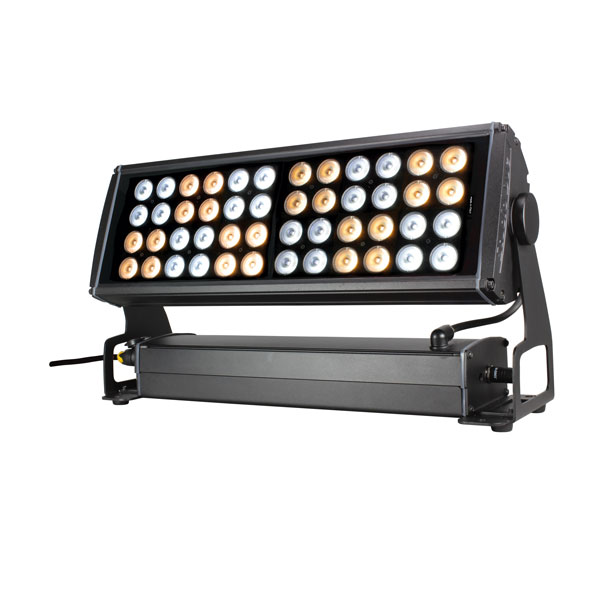

MP 48 WB (it. 194510)

MP 48 WB (it. 194510)

https://www.studiodue.com/web/image/product.template/248/image_1920?unique=5a91a4b

White balance RDM compact and powerful LED lighting fixture. IP 65 protection rating. 12 independent segment control of 4 PIX LEDs, which can be controlled individually offering the user endless creative possibilities.

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lenses
  • Filters
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Inrush current
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • Accessories - Flight case
  • Accessories - Anti glare
  • Accessories - Barn door
  • Accessories - Handle

This combination does not exist.

LED type CW+WW (5W)
Number of LEDs 96 (2700K) + 96 (6500K)
Lenses 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters None, f 20°, f 30°, f 8°x 60°
Connectors and cables Main Power: PowerCon IP65 connector (male-female), DMX signal: XLR5pin IP65 connector (male-female)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions LED display with flip function, Dedicated DMX channel for white balance from 2900K to 13000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, Flicker-free function
Setup RDM/DRS + touch control panel
DMX channels 50ch - 48ch - 4ch - 2ch
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 300
Current 1,3A@230VAC
Inrush current 60A@230V
IP protection rating 65, 67
Mounting systems Surface, Truss (optional)
Marine Grade treatment None, Yes
Sizes l x p x h (mm) 622 x 206 x 330 mm
Weight (Kgs) 16
Colour finishing Black RAL 9005 (standard)
Product Category Wall Washer
Accessories - Flight case None, Yes
Accessories - Anti glare None, Yes
Accessories - Barn door None, Yes
Accessories - Handle None, Yes
