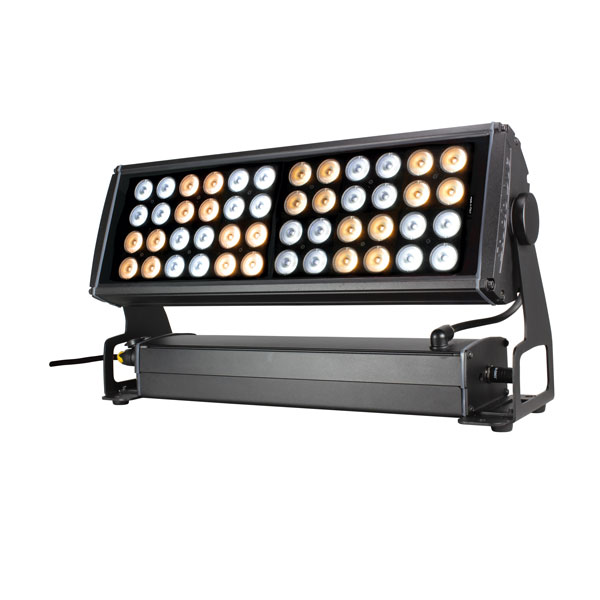

MP 48 WB (it. 194510)
White balance RDM compact and powerful LED lighting fixture. IP 65 protection rating. 12 independent segment control of 4 PIX LEDs, which can be controlled individually offering the user endless creative possibilities.
White balance RDM compact and powerful LED lighting fixture. IP 65 protection rating. 12 independent segment control of 4 PIX LEDs, which can be controlled individually offering the user endless creative possibilities.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | CW+WW (5W) |
| Number of LEDs | 96 (2700K) + 96 (6500K) |
| Optics | |
|---|---|
| Lenses | 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters | None, f 20°, f 30°, f 8°x 60° |
| Connections | |
|---|---|
| Connectors and cables | Main Power: PowerCon IP65 connector (male-female), DMX signal: XLR5pin IP65 connector (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | LED display with flip function, Dedicated DMX channel for white balance from 2900K to 13000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, Flicker-free function |
| DMX channels | 50ch - 48ch - 4ch - 2ch |
| Setup | RDM/DRS + touch control panel |
| Power supply | |
|---|---|
| Input range | 200 - 240 VAC; 47/63 Hz |
| Power max (W) | 300 |
| Current | 1,3A@230VAC |
| Inrush current | 60A@230V |
| Physical | |
|---|---|
| IP protection rating | 65, 67 |
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Sizes l x p x h (mm) | 622 x 206 x 330 mm |
| Weight (Kgs) | 16 |
| Product Category | Wall Washer |
| Colour finishing | Black RAL 9005 (standard) |
| Optional/Accessories | |
|---|---|
| Accessories - Flight case | None, Yes |
| Accessories - Barn door | None, Yes |
| Accessories - Anti glare | None, Yes |
| Accessories - Handle | None, Yes |
