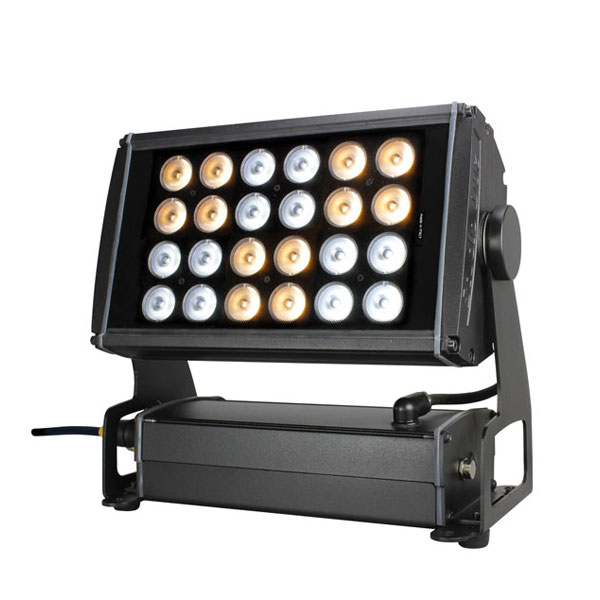

MP 24 WB (it.194610)

https://www.studiodue.com/web/image/product.template/249/image_1920?unique=5a91a4b

White balance compact and powerful LED lighting fixture. IP 65 protection rating. 6 independent segment control of 4 PIX LEDs, which can be controlled individually offering the user endless creative possibilities


Not Available For Sale

  • LED type
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Lenses
  • Filters
  • Connectors and cables
  • Control type
  • DMX channels
  • Functions
  • Setup
  • Input range
  • Power max (W)
  • Inrush current
  • IP protection rating
  • Sizes l x p x h (mm)
  • Mounting systems
  • Marine Grade treatment
  • Weight (Kgs)
  • Product Category
  • Colour finishing

This combination does not exist.


White balance compact and powerful LED lighting fixture. IP 65 protection rating. 6 independent segment control of 4 PIX LEDs, which can be controlled individually offering the user endless creative possibilities


Specifications

Lighting source
LED type CW+WW (5W)
LED expected lifetime (hrs) 50000
Lumen max source (lm) xxx
Optics
Lenses , 10°x30°, 15°, 25°, 40°, 60°
Filters None, f 20°, f 30°, f 8°x 60°
Connections
Connectors and cables Main Power: PowerCon IP65 connector (male-female), DMX signal: XLR5pin IP65 connector (male-female)
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions LED display with flip function, Dedicated DMX channel for white balance from 2900K to 13000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, Flicker-free function
DMX channels 26ch - 24ch - 4ch - 2ch
Setup RDM/DRS + touch control panel
Power supply
Input range Universal 100 - 240 VAC; 50/60 Hz
Power max (W) 150
Inrush current 60A@230V
Physical
IP protection rating 65, 67
Mounting systems Surface, Truss (optional)
Marine Grade treatment None, Yes
Sizes l x p x h (mm) 372 x 206 x 330
Weight (Kgs) 10
Product Category Wall Washer
Colour finishing Black RAL 9005 (standard)
