Product Description

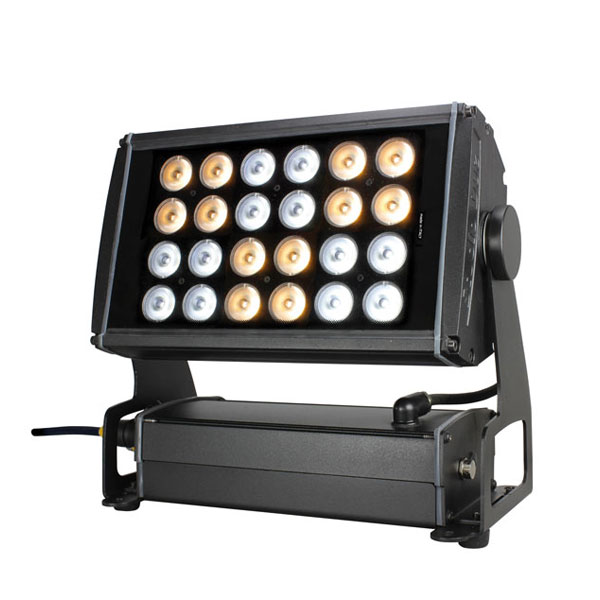

White balance compact and powerful LED lighting fixture. IP 65 protection rating. 6 independent segment control of 4 PIX LEDs, which can be controlled individually offering the user endless creative possibilities


Downloads

ART.194610 - MP 24 WB.zip
Technical specification
LED type
CW+WW (5W)
LED expected lifetime (hrs)
50000
Lumen MAX
xxx
Lenses
10°x30°
15°
25°
40°
60°
Filters
None
f 20°
f 30°
f 8°x 60°
Connectors and cables
Main Power: PowerCon IP65 connector (male-female)
DMX signal: XLR5pin IP65 connector (male-female)
Control type
Protocol USITT DMX512 - RDM
Protocol USITT DMX512 - RDM + Wireless (on request)
Functions
LED display with flip function
Dedicated DMX channel for white balance from 2900K to 13000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Ultrafast strobe effect
Halogen simulation
Flicker-free function
Setup
RDM/DRS + touch control panel
DMX channels
26ch - 24ch - 4ch - 2ch
Input range
Universal 100 - 240 VAC; 50/60 Hz
Power (W)
150
Inrush current
60A@230V
IP protection rating
65
67
Mounting systems
Surface
Truss (optional)
Marine Grade treatment
None
Yes
Sizes l x p x h (mm)
372 x 206 x 330
Weight (Kgs)
10
Colour finishing
Black RAL 9005 (standard)
