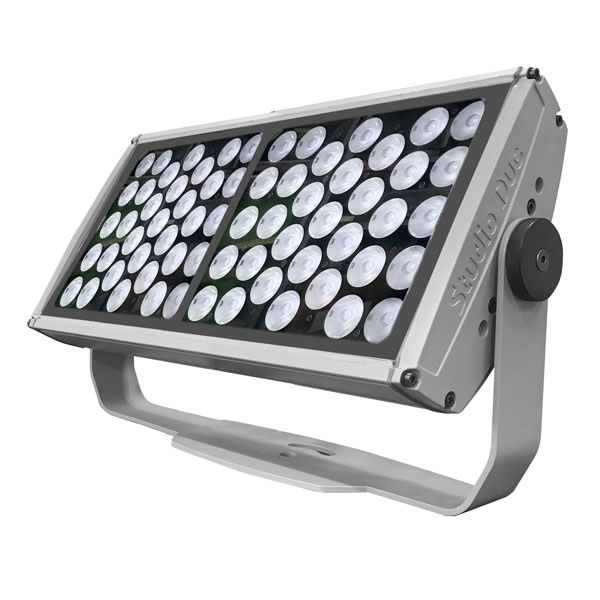

MEGAWHITE 66 WB (it. 211010) | Studiodue.com

High power white balance fixture. 66 warm + 66 cool high brightness (5W) white LEDs. IP 67 protection rating. DMX-RDM.

Specifications

Lighting source
LED type	CW+WW (5W)
Lumen max source (lm)	32000
Number of LEDs	66 (2700K) + 66 (6500K)

Optics
Lenses	8°, 15°, 15°x30°, 25°, 40°, 60°

Connections
Connectors and cables	Main Power: 3x1mm cable H05 1,5mt, DMX signal: 4pin IP67 connector (male-female)

Control
Control type	DMX - RDM, DMX - RDM + Wireless (on request)

Functions and Setup
Functions	Dedicated DMX channel for white balance from 2700K to 6500K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, Flicker-free function
Setup	RDM/DRS
DMX channels	4ch - 2ch - 1ch

Power supply
Input range	100 - 277 VAC; 47/63 Hz
Power max (W)	240
Current	1,1A@230VAC
Power Factor	PF>0,95@230VAC
Inrush current	80A@230V

Physical
Mounting systems	Surface, Truss (optional)
Marine Grade treatment	None, Yes
Colour finishing	Grey RAL 9006 (standard) , Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional)
Materials	Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
IP protection rating	67
Operating temperature	-30°C +45°C
Sizes l x p x h (mm)	640x162x320
Weight (Kgs)	15
Product Category	Wall Washer

Optional/Accessories
Accessories - Anti glare	None, Yes
Accessories - Barn door	None, Yes
