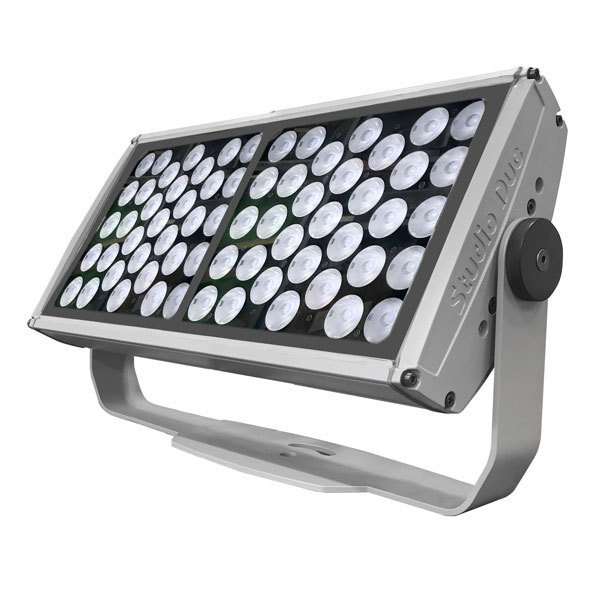

MEGAWHITE 66 WB DALI (it. 211020)

MEGAWHITE 66 WB DALI (it. 211020)

https://www.studiodue.com/web/image/product.template/1491/image_1920?unique=5a91a4b


Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • Input range
  • Power max (W)
  • Current
  • Power Factor
  • Inrush current
  • IP protection rating
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • Accessories - Anti glare
  • Accessories - Barn door

This combination does not exist.

LED type CW+WW (5W)
Number of LEDs 66 (2700K) + 66 (6500K)
Lumen max source (lm) 32000
Lenses 8°, 15°, 15°x30°, 25°, 40°, 60°
Connectors and cables Main Power: 3x1mm cable H05 1,5mt, DMX signal: 4pin IP67 connector (male-female)
Control type DALI DT8
Functions White balance from 2700K to 6500K
Setup DALI
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 240
Current 1,1A@230VAC
Power Factor PF>0,95@230VAC
Inrush current 80A@230V
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) , Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
IP protection rating 67
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 640x162x320
Weight (Kgs) 15
Product Category Wall Washer
Accessories - Anti glare None, Yes
Accessories - Barn door None, Yes
