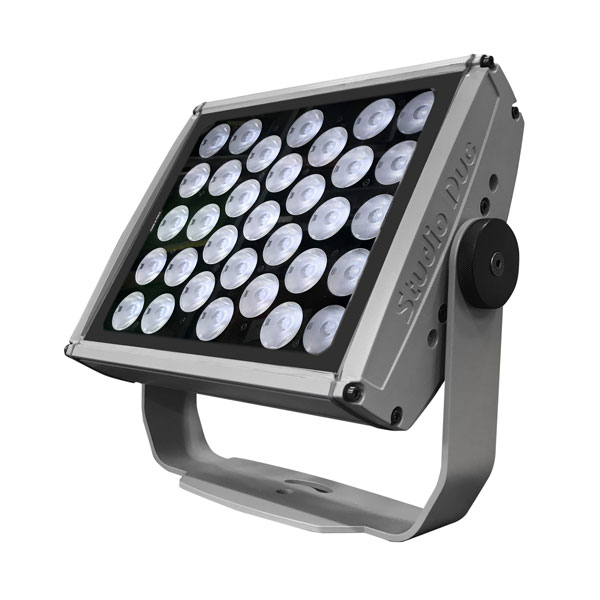

MEGAWHITE 33 WB DALI (it. 210520)
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | CW+WW (5W) |
| Lumen max source (lm) | 16000 |
| Number of LEDs | 33 (2700k) + 33 (6500k) |
| Optics | |
|---|---|
| Lenses | 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H05 1,5mt, DMX signal: 4pin IP67 connector (male-female) |
| Control | |
|---|---|
| Control type | DALI DT8 |
| Functions and Setup | |
|---|---|
| Functions | White balance from 2700K to 6500K |
| Setup | DALI |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 120 |
| Current | 0,55A@230VAC |
| Power Factor | PF>0,95@230VAC |
| Inrush current | 40A@230V |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Grey RAL 9006 (standard) , Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| IP protection rating | 67 |
| Operating temperature | -30°C +45°C |
| Sizes l x p x h (mm) | 356x162x320 |
| Weight (Kgs) | 8 |
| Product Category | Wall Washer |
| Optional/Accessories | |
|---|---|
| Accessories - Anti glare | None, Yes |
| Accessories - Barn door | None, Yes |
