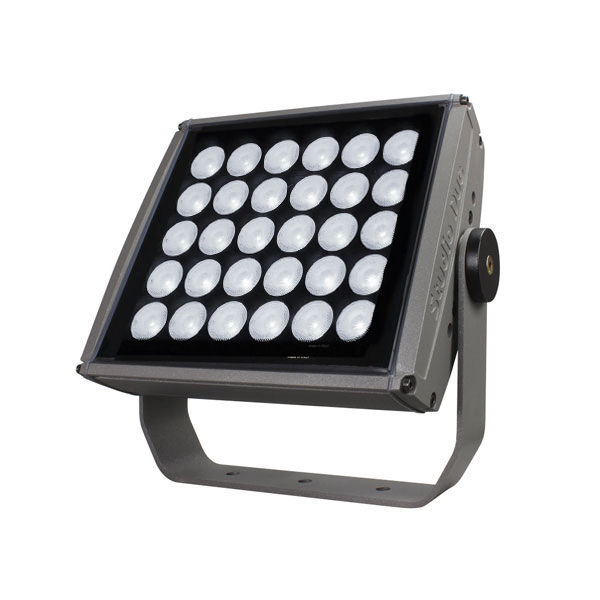

MEGAWHITE 33 M PLUG-IN (it. 210500)
High power Monochromatic fixture. 30 high brightness (5W) White LEDs. IP 67 protection rating. PLUG-IN version.
Documents
High power Monochromatic fixture. 30 high brightness (5W) White LEDs. IP 67 protection rating. PLUG-IN version.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Lumen max source (lm) | 16000 |
| Number of LEDs | 30 White (5W) |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H05 1,5mt |
| Control | |
|---|---|
| Control type | Plug-in |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 120 |
| Current | 0,55A@230VAC |
| Power Factor | PF>0,95@230VAC |
| Inrush current | 40A@230V |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Grey RAL 9006 (standard) , Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| IP protection rating | 67 |
| Operating temperature | -30°C +45°C |
| Sizes l x p x h (mm) | 356x162x320 |
| Weight (Kgs) | 8 |
| Product Category | Wall Washer |
| Optional/Accessories | |
|---|---|
| Accessories - Anti glare | None, Yes |
| Accessories - Barn door | None, Yes |
