M-TERRA WL1 (it.144110)

M-TERRA WL1 (it.144110)

https://www.studiodue.com/web/image/product.template/222/image_1920?unique=ebb5c5f

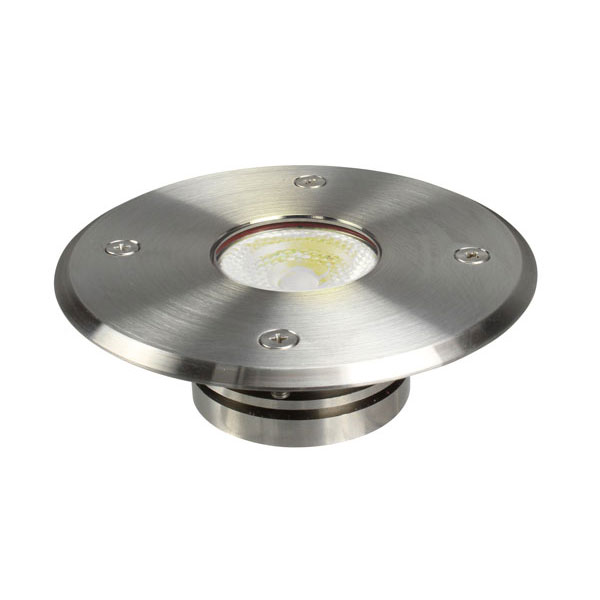

Stainless steel AISI 304 inground fixture IP 67 protection rating. It includes n.1 Monochromatic LED. 45 mm lens. Suitable for outdoor installations.

Not Available For Sale

  • LED type
  • Lumen max source (lm)
  • Number of LEDs
  • Lenses
  • Filters (optional)
  • Control type
  • Input range
  • IP protection rating
  • IK grade protection
  • Mounting systems
  • Weight (Kgs)
  • Dimensions d x h (mm)
  • Product Category
  • Materials
  • Case
  • Plastic Case M-TERRA (art.900535)
  • MD BOX 5,5V (art.500055)
  • CONTROL BOX IC5 5,5V (art.510055)
  • CD 10x M-TER MONO-DALI (art. 532055)
  • CD 10x M-TER RGBW-M (art.531055)
  • CD 2x M-TER RGBW-M (art.533055)
  • CD 2x M-TER MONO-DALI (art.534055)
  • PS 10x M-TER PLUG-IN (art.545055)
  • PS 2x M-TER PLUG-IN (art.546055)

This combination does not exist.

Contact Us


Stainless steel AISI 304 inground fixture IP 67 protection rating. It includes n.1 Monochromatic LED. 45 mm lens. Suitable for outdoor installations.

Specifications

Lighting source
LED type WHITE 2700K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
Lumen max source (lm) 500
Number of LEDs 1 White (5W)
Optics
Lenses 6°, 10°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Control
Control type External Control Driver, DALI DT6
Power supply
Input range 5,5 VDC
Physical
IP protection rating 67, 68 optional
Materials Ultra clear 10mm tempered glass, All in stainless steel AISI304
IK grade protection 08
Mounting systems Inground
Weight (Kgs) 0,9
Dimensions d x h (mm) 130 x 42
Product Category Inground
Finishings
Case AISI 304 (standard), AISI 316 (optional), Aluminium (optional), Aluminium - Marine Grade (optional)
Others
Plastic Case M-TERRA (art.900535) No, Yes
MD BOX 5,5V (art.500055) No, Yes
CONTROL BOX IC5 5,5V (art.510055) No, Yes
CD 10x M-TER MONO-DALI (art. 532055) No, Yes
CD 10x M-TER RGBW-M (art.531055) No, Yes
CD 2x M-TER RGBW-M (art.533055) No, Yes
CD 2x M-TER MONO-DALI (art.534055) No, Yes
PS 10x M-TER PLUG-IN (art.545055) No, Yes
PS 2x M-TER PLUG-IN (art.546055) No, Yes
