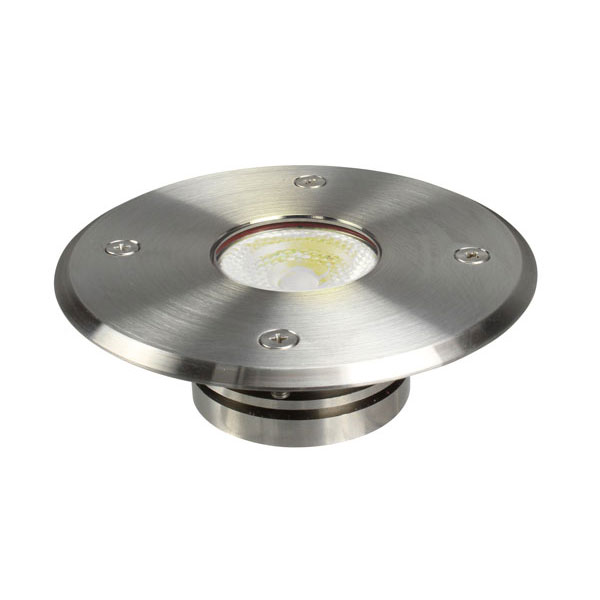

M-TERRA WL1 (it.144110)
Stainless steel AISI 304 inground fixture IP 67 protection rating. It includes n.1 Monochromatic LED. 45 mm lens. Suitable for outdoor installations.
| LED type | WHITE 2700K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 1 White (5W) |
| Lumen max source (lm) | 500 |
| Lenses | 6°, 10°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Control type | External Control Driver, DALI DT6 |
| Input range | 5,5 VDC |
| IP protection rating | 67, 68 optional |
| Materials | Ultra clear 10mm tempered glass, All in stainless steel AISI304 |
| IK grade protection | 08 |
| Dimensions d x h (mm) | 130 x 42 |
| Weight (Kgs) | 0,9 |
| Mounting systems | Inground |
| Product Category | Inground |
| Case | AISI 304 (standard), AISI 316 (optional), Aluminium (optional), Aluminium - Marine Grade (optional) |
| Plastic Case M-TERRA (art.900535) | No, Yes |
| MD BOX 5,5V (art.500055) | No, Yes |
| CONTROL BOX IC5 5,5V (art.510055) | No, Yes |
| CD 10x M-TER MONO-DALI (art. 532055) | No, Yes |
| CD 10x M-TER RGBW-M (art.531055) | No, Yes |
| CD 2x M-TER RGBW-M (art.533055) | No, Yes |
| CD 2x M-TER MONO-DALI (art.534055) | No, Yes |
| PS 10x M-TER PLUG-IN (art.545055) | No, Yes |
| PS 2x M-TER PLUG-IN (art.546055) | No, Yes |
Stainless steel AISI 304 inground fixture IP 67 protection rating. It includes n.1 Monochromatic LED. 45 mm lens. Suitable for outdoor installations.
