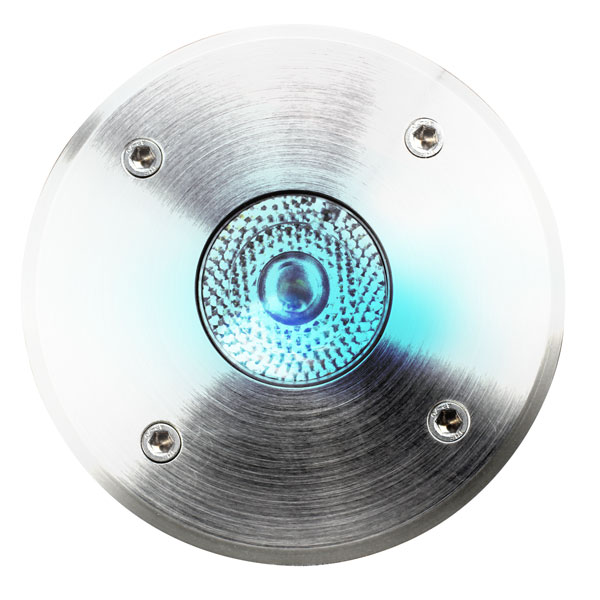

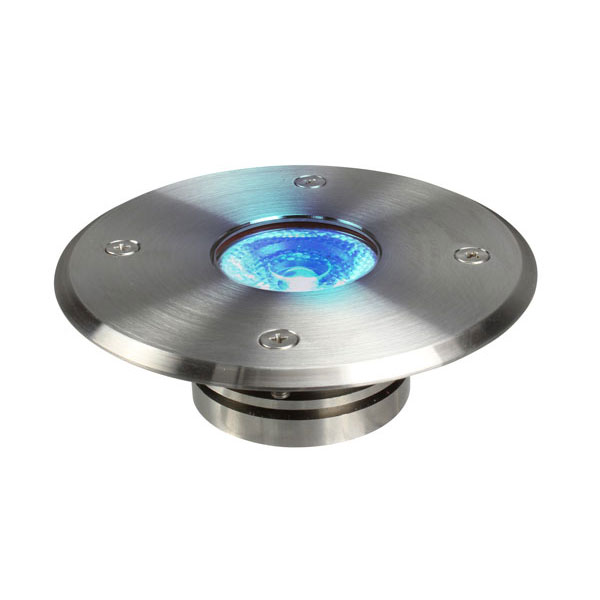

M -TERRA L1 RGBW (it. 144010)

https://www.studiodue.com/web/image/product.template/60/image_1920?unique=5530c45

Apparecchio inground in acciaio inossidabile AISI 304 con grado di protezione IP67. Presenta n.1 LED RGBW. Lente 45 mm. Adatto per installazioni all’esterno. Necessita di Control Driver esterno.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Control type
  • Input range
  • Power max (W)
  • IP protection rating
  • IK grade protection
  • Dimensions d x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Product Category
  • Case
  • Plastic Case M-TERRA (art.900535)
  • MD BOX 5,5V (art.500055)
  • CONTROL BOX IC5 5,5V (art.510055)
  • CD 10x M-TER RGBW-M (art.531055)
  • CD 2x M-TER RGBW-M (art.533055)

This combination does not exist.

LED type RGBW/FC (20W)
Number of LEDs 1 (20W)
LED expected lifetime (hrs) 50000
Lumen max source (lm) 330
Red lumen (lm) 60
Green lumen (lm) 140
Blu lumen (lm) 20
White lumen (lm) 130
Lenses 10°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Control type External Control Driver
Input range 5,5 VDC
Power max (W) 6
IP protection rating 67, 68 optional
Materials Ultra clear 10mm tempered glass, All in stainless steel AISI304
IK grade protection 08
Dimensions d x h (mm) 130 x 42
Weight (Kgs) 0,9
Mounting systems Inground
Product Category Inground
Case AISI 304 (standard), AISI 316 (optional), Aluminium (optional), Aluminium - Marine Grade (optional)
Plastic Case M-TERRA (art.900535) No, Yes
MD BOX 5,5V (art.500055) No, Yes
CONTROL BOX IC5 5,5V (art.510055) No, Yes
CD 10x M-TER RGBW-M (art.531055) No, Yes
CD 2x M-TER RGBW-M (art.533055) No, Yes
Contact Us


Apparecchio inground in acciaio inossidabile AISI 304 con grado di protezione IP67. Presenta n.1 LED RGBW. Lente 45 mm. Adatto per installazioni all’esterno. Necessita di Control Driver esterno.
