M-ARIA WL1 (it.154110)

M-ARIA WL1 (it.154110)

https://www.studiodue.com/web/image/product.template/274/image_1920?unique=5a91a4b

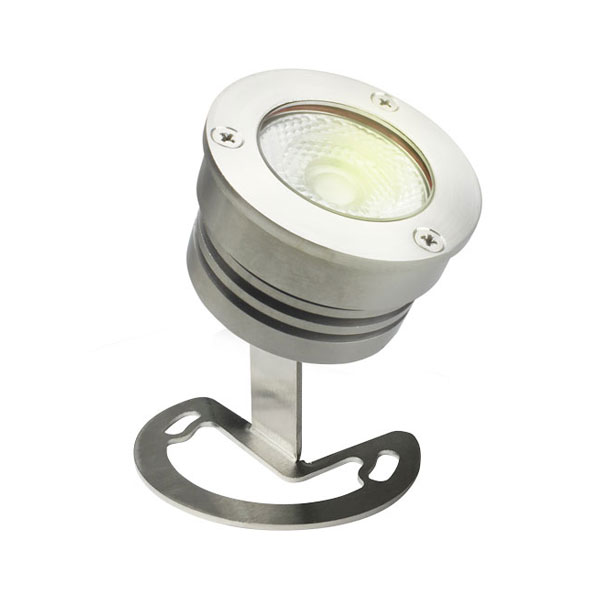

Stainless steel AISI 304 spot light with bracket. IP 67 protection rating. It includes n. 1 Monochromatic LED with 45mm lens. Suitable for outdoor installations. Requires external Control Driver.

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • IP protection rating
  • Dimensions d x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Product Category
  • Case
  • MD BOX 5,5V (art.500055)
  • CONTROL BOX IC5 5,5V (art.510055)
  • CD 10x M-TER RGBW-M (art.531055)
  • CD 10x M-TER MONO-DALI (art. 532055)
  • CD 2x M-TER RGBW-M (art.533055)
  • CD 2x M-TER MONO-DALI (art.534055)
  • PS 10x M-TER PLUG-IN (art.545055)
  • PS 2x M-TER PLUG-IN (art.546055)

This combination does not exist.

LED type WHITE 2700K, WHITE 4000K, BIANCO 5600K, RED, GREEN, BLUE, AMBER
Number of LEDs 1 White (5W)
Lumen max source (lm) 500
Lenses 6°, 10°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Control type External Control Driver
Functions Control Driver esterno
Input range 5,5 VDC
Power max (W) 6
IP protection rating 67, 68 optional
Mounting systems Surface, Truss (optional)
Dimensions d x h (mm) 72 x 105
Weight (Kgs) 0,9
Materials Ultra clear 10mm tempered glass
Product Category Spot
Case AISI 304 (standard), AISI 316 (optional), Aluminium (optional), Aluminium - Marine Grade (optional)
MD BOX 5,5V (art.500055) No, Yes
CONTROL BOX IC5 5,5V (art.510055) No, Yes
CD 10x M-TER RGBW-M (art.531055) No, Yes
CD 10x M-TER MONO-DALI (art. 532055) No, Yes
CD 2x M-TER RGBW-M (art.533055) No, Yes
CD 2x M-TER MONO-DALI (art.534055) No, Yes
PS 10x M-TER PLUG-IN (art.545055) No, Yes
PS 2x M-TER PLUG-IN (art.546055) No, Yes
Contact Us


Stainless steel AISI 304 spot light with bracket. IP 67 protection rating. It includes n. 1 Monochromatic LED with 45mm lens. Suitable for outdoor installations. Requires external Control Driver.
