M-ARIA L1 RGBW (it.154010)

M-ARIA L1 RGBW (it.154010)

https://www.studiodue.com/web/image/product.template/59/image_1920?unique=5a91a4b

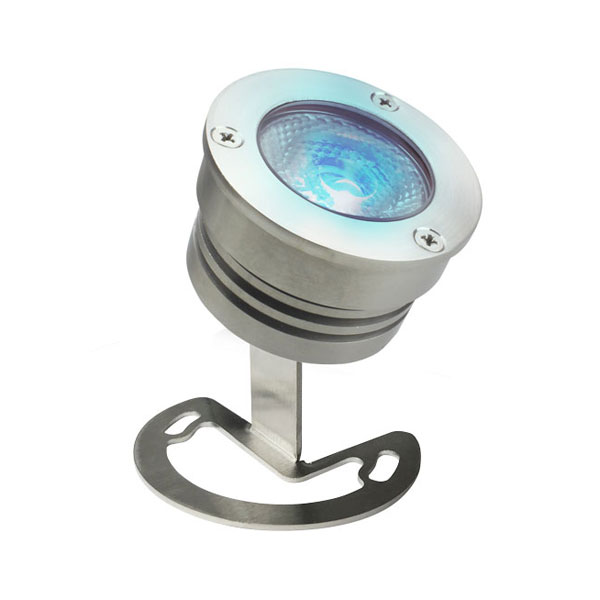

Stainless steel AISI 304 spot light with bracket. IP 67 protection rating. It includes n. 1 RGBW/FC LED with 45 mm lens. Suitable for outdoor installations.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Control type
  • Input range
  • Power max (W)
  • IP protection rating
  • Dimensions d x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Product Category
  • Case
  • MD BOX 5,5V (art.500055)
  • CONTROL BOX IC5 5,5V (art.510055)
  • CD 10x M-TER RGBW-M (art.531055)
  • CD 2x M-TER RGBW-M (art.533055)

This combination does not exist.

LED type RGBW5050MULTICHIP
Number of LEDs 1 (20W)
LED expected lifetime (hrs) 50000
Lumen max source (lm) 330
Red lumen (lm) 60
Green lumen (lm) 140
Blu lumen (lm) 20
White lumen (lm) 130
Lenses 10°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Control type Constant voltage
Input range 5,5 VDC
Power max (W) 6
IP protection rating 67, 68 optional
Mounting systems Surface, Truss (optional)
Dimensions d x h (mm) 134 x 108,5
Weight (Kgs) 2,5
Materials Ultra clear 10mm tempered glass
Product Category Spot
Case AISI 304 (standard), AISI 316 (optional), Aluminium (optional), Aluminium - Marine Grade (optional)
MD BOX 5,5V (art.500055) No, Yes
CONTROL BOX IC5 5,5V (art.510055) No, Yes
CD 10x M-TER RGBW-M (art.531055) No, Yes
CD 2x M-TER RGBW-M (art.533055) No, Yes
Contact Us


Stainless steel AISI 304 spot light with bracket. IP 67 protection rating. It includes n. 1 RGBW/FC LED with 45 mm lens. Suitable for outdoor installations.
