Product Description

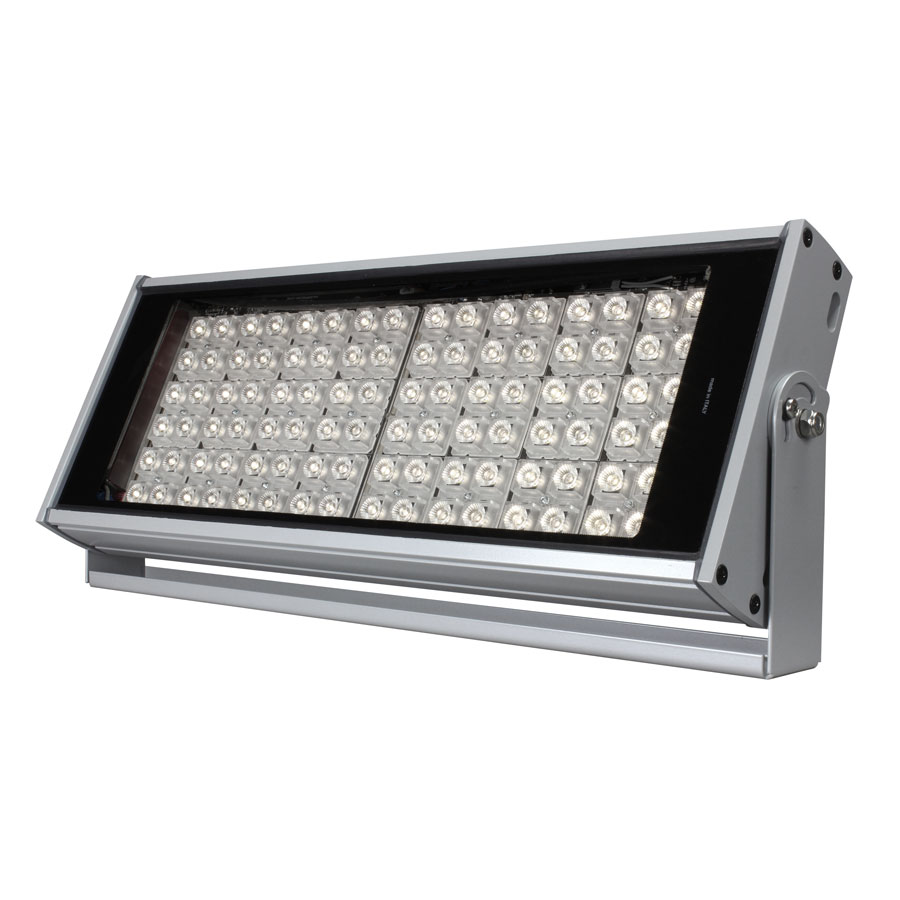

Floodlight for accurate light distribution and low consumption (96 mid power White LEDs). Compact and lightweight aluminium case. PLUG-IN version.

Downloads
Technical specification
LED type
WHITE 2900K
WHITE 4000K
Number of LEDs
96 Mid Power
LED expected lifetime (hrs)
90000
Lumen MAX
14000 (@4000K - lens 25°)
CRI
>80
Efficiency
170lm/W (light source), 130lm/W (fixture)
Lenses
10°
25°
30°x100°
35°x145°
50°
90°
Filters
None
Connectors and cables
Main Power: Cable 3x0.75mm H07 2mt
Control type
Plug-in
Input range
180 - 260 VAC; 47/63 Hz
Power (W)
80
Current
0,34@230V
Power Factor
PF>0,95@230VAC
Materials
Ultra clear 4mm tempered glass
PMMA lenses
Aluminium alloy housing
Polyester powder coated
Mounting systems
Surface
Truss (optional)
Colour finishing
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
Marine Grade treatment
None
Yes
Tilt
170°
IP protection rating
67
IK grade protection
08
Operating temperature
-30°C +50°C
Sizes l x p x h (mm)
585 x 60 x 245
Weight (Kgs)
4,5
