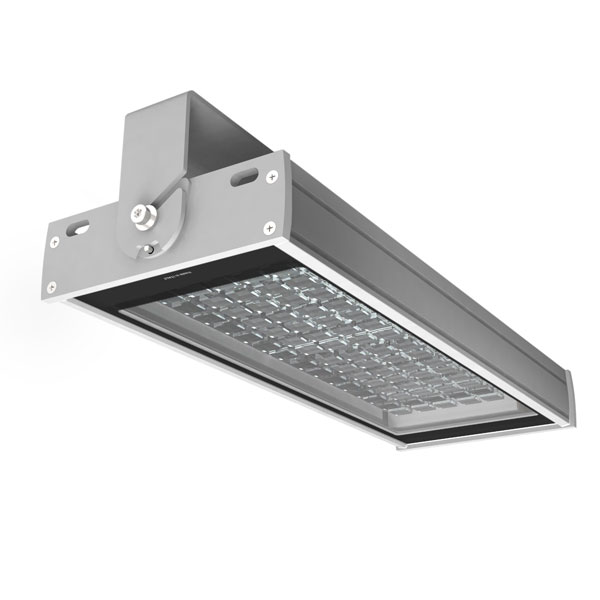

FLAT 96 PLUG-IN high bay (it.221400)

FLAT 96 PLUG-IN high bay (it.221400)

https://www.studiodue.com/web/image/product.template/2280/image_1920?unique=5a91a4b

Floodlight (High Bay version) for accurate light distribution and low power consumption (96 mid power White LEDs). Compact and lightweight aluminum housing. PLUG-IN version.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • CRI
  • Efficiency
  • Lenses
  • Connectors and cables
  • Control type
  • Input range
  • Power max (W)
  • Current
  • Power Factor
  • Tilt
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type WHITE 2900K, WHITE 4000K
Number of LEDs 96 Mid Power
LED expected lifetime (hrs) 90000
Lumen max source (lm) 14000 (@4000K - lens 25°)
CRI >80
Efficiency 170lm/W (light source), 130lm/W (fixture)
Lenses 10°, 25°, 30°x100°, 35°x145°, 50°, 90°
Connectors and cables Main Power: cable 3x0,75mm H07 2mt
Control type Plug-in
Input range 180 - 260 VAC; 47/63 Hz
Power max (W) 80
Current 0,34@230VAC
Power Factor PF>0,95@230VAC
Materials Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated
Mounting systems Truss (optional) , High Bay
Colour finishing Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional)
Marine Grade treatment None, Yes
Tilt 180°
IP protection rating 67
IK grade protection 08
Operating temperature -30°C +50°C
Sizes l x p x h (mm) 585 x 60 x 245 mm
Weight (Kgs) 4,5
Product Category High Bay
