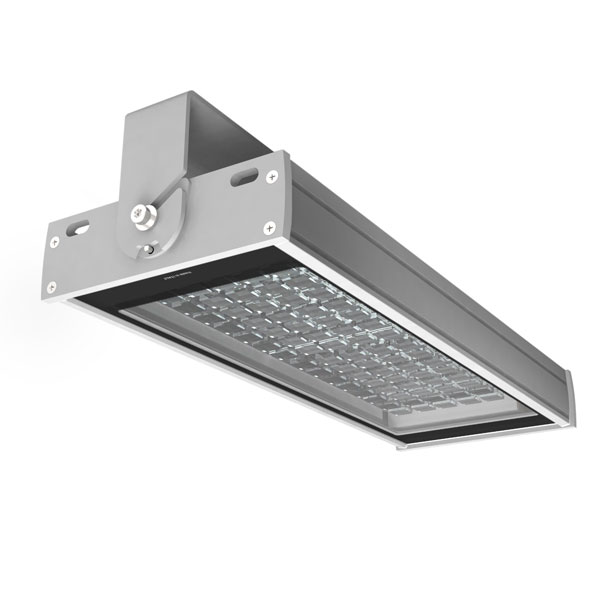

FLAT 96 DMX-RDM DALI high bay (it.221430)
Floodlight (High Bay version) for accurate light distribution and low power consumption (96 mid power White LEDs). Compact and lightweight aluminum housing. Version with DMX-RDM and DALI interface.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2900K, WHITE 4000K |
| Number of LEDs | 96 Mid Power |
| LED expected lifetime (hrs) | 90000 |
| Lumen source (lm) | 14000 (@4000K - lens 25°) |
| Efficiency | 170lm/W (light source), 130lm/W (fixture) |
| CRI | >80 |
| Optics | |
|---|---|
| Lenses | 10°, 25°, 30°x100°, 35°x145°, 50°, 90° |
| Connections | |
|---|---|
| Connectors and cables | Main Power: cable 3x0,75mm H07 2mt, DMX/DALI signal : Cable 4 wires 2mt |
| Control | |
|---|---|
| Control type | DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, Flicker-free function |
| Setup | RDM/DRS, DALI |
| DMX channels | 3ch - 1ch |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power Factor | PF>0,95@230VAC |
| Power max (W) | 95 |
| Current | 0,34@230VAC |
| Physical | |
|---|---|
| Mounting systems | Truss (optional) , High Bay |
| Colour finishing | Grey RAL 9006 (standard) 1, Black RAL 9005 (optional), White RAL 9010 (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated |
| Operating temperature | -30°C +50°C |
| Sizes l x p x h (mm) | 585 x 60 x 245 mm |
| Tilt | 180° |
| Weight (Kgs) | 4,5 |
| Product Category | High Bay |
| IP protection rating | 67 |
| IK grade protection | 08 |
| Optional/Accessories | |
|---|---|
| _MARINE GRADE TREATMENT (art.900546) | -, Marine grade treatment |
