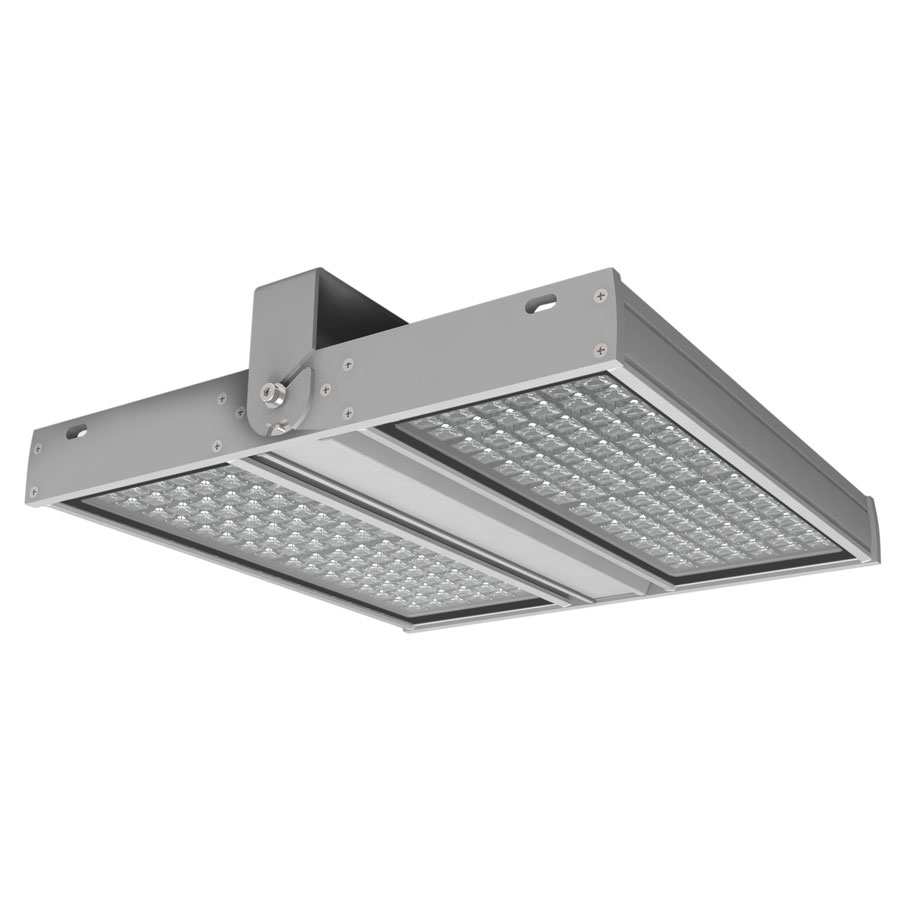

FLAT 192 PLUG-IN high bay (it.220900)
Floodlight (High Bay version) for accurate light distribution and low power consumption (192 mid power White LEDs). Compact and lightweight aluminum housing. PLUG-IN version. It is possible to fix the fixture with 4 chains (not supplied) instead of the fixing bracket.
Documents
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2900K, WHITE 4000K |
| Number of LEDs | 192 Mid Power |
| LED expected lifetime (hrs) | 90000 |
| Lumen max source (lm) | 28000 (@4000K - lens 25°) |
| Efficiency | 170lm/W (light source), 130lm/W (fixture) |
| CRI | >80 |
| Optics | |
|---|---|
| Lenses (upper head) | 10°, 25°, 30°x100°, 35°x145°, 50°, 90° |
| Lenses (lower head) | 10°, 25°, 30°x100°, 35°x145°, 50°, 90° |
| Connections | |
|---|---|
| Connectors and cables | Main power: cable 3x1mm H07 2mt |
| Control | |
|---|---|
| Control type | Plug-in |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 170 |
| Current | 0,75A@230VAC |
| Power Factor | PF>0,95@230VAC |
| Physical | |
|---|---|
| Mounting systems | Truss (optional) , High Bay |
| Marine Grade treatment | None, Yes |
| Colour finishing | Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated |
| Operating temperature | -30°C +50°C |
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 540 x 60 x 538 |
| Tilt | 300° |
| Weight (Kgs) | 9,5 |
| Product Category | Wall Washer |
| IK grade protection | 08 |
