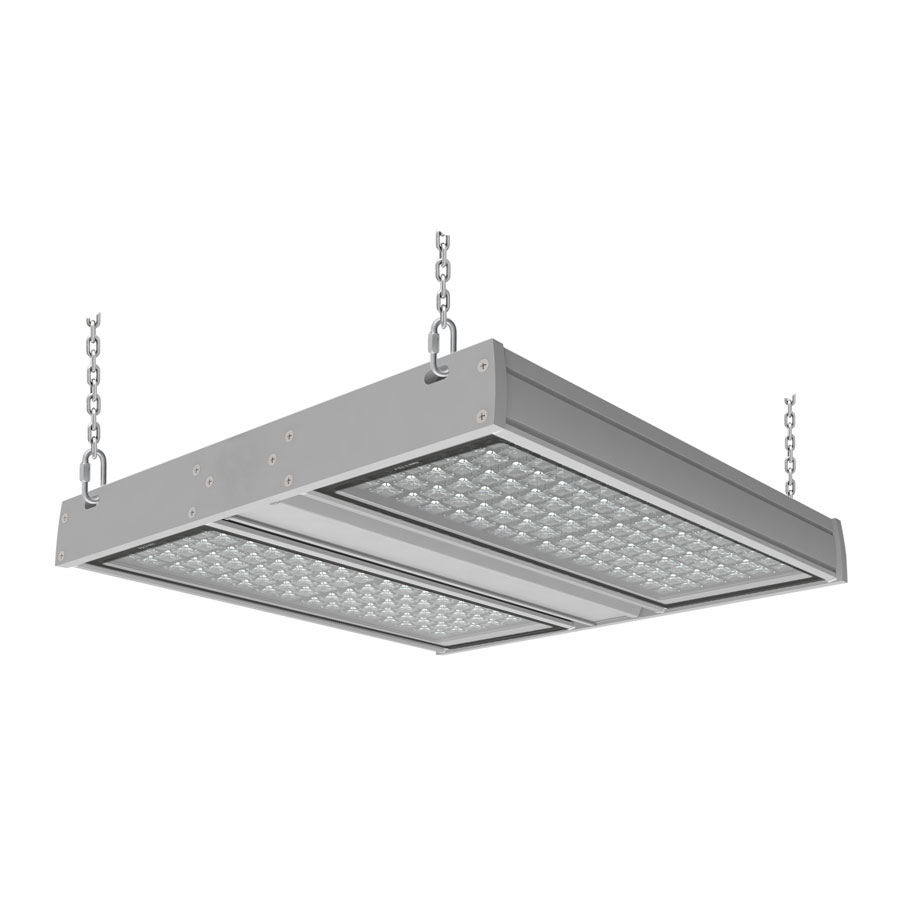

FLAT 192 DMX-RDM DALI Suspended (it.220938)

• LED type
  • WHITE 2900K
  • WHITE 4000K
• Number of LEDs
  • 192 Mid Power
• LED expected lifetime (hrs)
  • 90000
• Lumen max source (lm)
  • 28000 (@4000K - lens 25°)
• CRI
  • >80
• Efficiency
  • 170lm/W (light source), 130lm/W (fixture)
• Lenses
  • 5°
  • 10°
  • 25°
  • 30°x100°
  • 35°x145°
  • 50°
  • 90°
• Filters
  • None
• Connectors and cables
  • Main power: cable 3x1mm H07 2mt
  • DMX/DALI signal : Cable 4 wires 2mt
• Control type
  • DMX - RDM + DALI
  • DMX - RDM + DALI + Wireless (on request)
• Functions
  • DMX or Auto Mode with Master-Slave function
  • Intelligent temperature control
  • Smooth dimming function
  • Ultrafast strobe effect
  • Halogen simulation
  • Flicker-free function
• Setup
  • RDM/DRS
  • DALI
• DMX channels
  • 3ch - 1ch
• Input range
  • 100 - 277 VAC; 47/63 Hz
• Power max (W)
  • 170
• Current
  • 0,75A@230VAC
• Power Factor
  • PF>0,95@230VAC
• Tilt
  • 300°
• IP protection rating
  • 67
• IK grade protection
  • 08
• Operating temperature
  • -30°C +50°C
• Sizes l x p x h (mm)
  • 540 x 60 x 538
• Weight (Kgs)
  • 9,5
• Materials
  • Ultra clear 4mm tempered glass
  • PMMA lenses
  • Aluminium alloy housing
  • Polyester powder coated
• Mounting systems
  • High Bay
• Colour finishing
• Marine Grade treatment
  • None
  • Yes
• Product Category
  • Wall Washer
