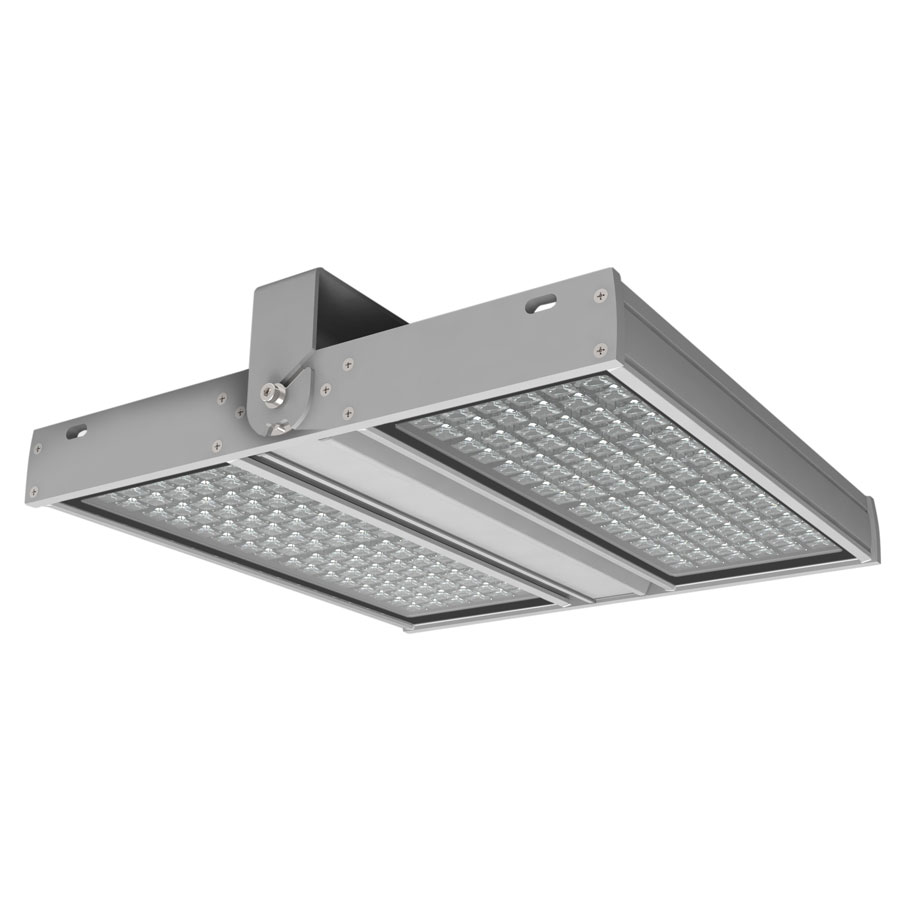

FLAT 192 DMX-RDM DALI high bay (it.220930)

https://www.studiodue.com/web/image/product.template/2285/image_1920?unique=5a91a4b

Floodlight (High Bay version) for accurate light distribution and low power consumption (192 mid power White LEDs). Compact and lightweight aluminum housing. Version with DMX-RDM and DALI interface. It is possible to fix the fixture with 4 chains (not supplied) instead of the fixing bracket.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • CRI
  • Efficiency
  • Lenses (upper head)
  • Lenses (lower head)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Power Factor
  • Tilt
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type WHITE 2900K, WHITE 4000K
Number of LEDs 192 Mid Power
LED expected lifetime (hrs) 90000
Lumen max source (lm) 28000 (@4000K - lens 25°)
CRI >80
Efficiency 170lm/W (light source), 130lm/W (fixture)
Lenses (upper head) 10°, 25°, 30°x100°, 35°x145°, 50°, 90°
Lenses (lower head) 10°, 25°, 30°x100°, 35°x145°, 50°, 90°
Connectors and cables Main power: cable 3x1mm H07 2mt, DMX/DALI signal : Cable 4 wires 2mt
Control type DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request)
Functions DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, Flicker-free function
Setup RDM/DRS, DALI
DMX channels 3ch - 1ch
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 170
Current 0,75A@230VAC
Power Factor PF>0,95@230VAC
Materials Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated
Mounting systems Truss (optional) , High Bay
Colour finishing Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional)
Marine Grade treatment None, Yes
Tilt 300°
IP protection rating 67
IK grade protection 08
Operating temperature -30°C +50°C
Sizes l x p x h (mm) 540 x 60 x 538
Weight (Kgs) 9,5
Product Category Wall Washer
Contact Us


Floodlight (High Bay version) for accurate light distribution and low power consumption (192 mid power White LEDs). Compact and lightweight aluminum housing. Version with DMX-RDM and DALI interface. It is possible to fix the fixture with 4 chains (not supplied) instead of the fixing bracket.
