Descrizione prodotto

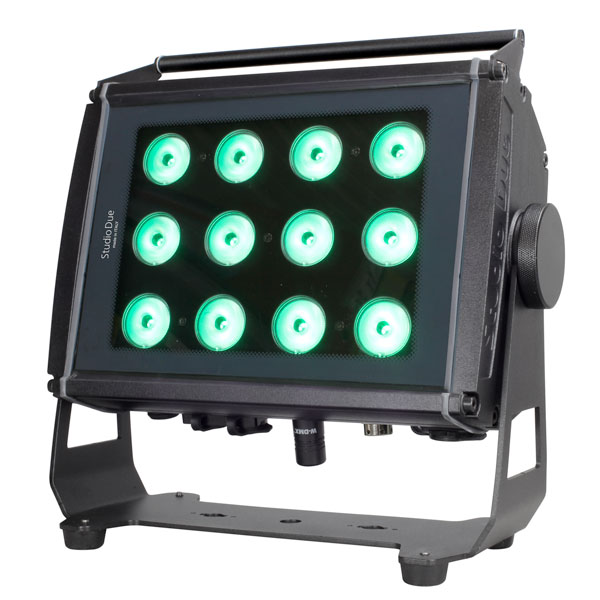

Rechargeable High-Performance li-on battery pack and wireless wash LED colorchanger. 12 RGBW full color LEDs. IP 65 protection rating.
Downloads
Specifiche tecniche
| Lighting source | |
|---|---|
LED type
|
RGBW5050MULTICHIP
|
Number of LEDs
|
12
|
LED expected lifetime (hrs)
|
50000
|
Lumen MAX
|
4250
|
Red lumen (lm)
|
800
|
Green lumen (lm)
|
1700
|
Blu lumen (lm)
|
300
|
White lumen (lm)
|
1.750
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters
|
None
f 20°
f 30°
frost 65°
|
| Control | |
Control type
|
DMX - RDM + Wireless
|
| Functions and Setup | |
Functions
|
RDM/DRS + touch control panel
Wireless DMX receiver
|
| Power supply | |
Input range
|
100 - 240 VAC; 47/63 Hz
|
Power (W)
|
110
|
Inrush current
|
60A@230V
|
| Physical | |
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
|
Marine Grade treatment
|
None
Yes
|
IP protection rating
|
65
|
Sizes l x p x h (mm)
|
310 x 135 x 295 mm
|
Weight (Kgs)
|
7
|
| Uncategorized | |
Colour temperature (K)
|
3000k-15000k
|
