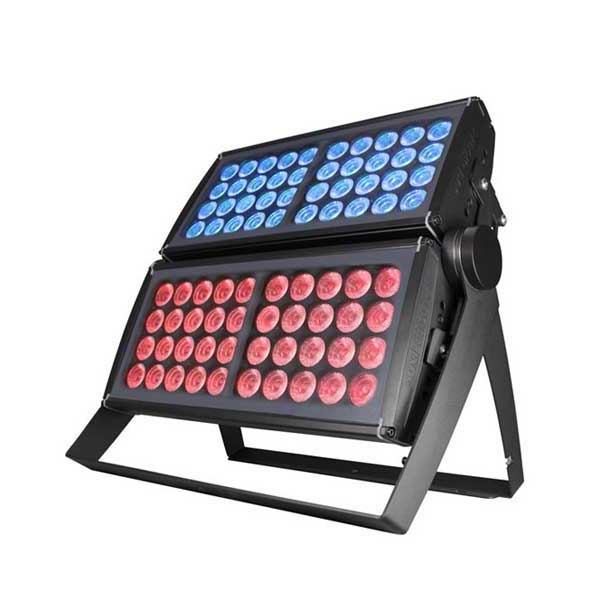

DUAL 80HP RGBW (it.140610)

https://www.studiodue.com/web/image/product.template/242/image_1920?unique=5a91a4b

Hi-Power two headed colorchanger even more powerful. LEds are driven and can be actioned separately.  Nr. 80 Hi-Power LEDs.  IP 67protection rate.  Possibility to set up different lenses on each head.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses (upper head)
  • Lenses (lower head)
  • Filters upper head (optional)
  • Filters lower head (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Inrush current
  • IP protection rating
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • 540-BD (art.900107)
  • 540-AG (art.900007)
  • 540LED-FROST (art.900409)
  • CLAMP/C (art.900516)
  • FFB (art.900517)
  • SAFETY WIRE/C (art.900523)
  • CCLED CASEx2 (art. a richiesta) Flight Case

This combination does not exist.

LED type RGBW5050MULTICHIP
Number of LEDs 80
LED expected lifetime (hrs) 50000
Lumen max source (lm) 56000
Red lumen (lm) 13440
Green lumen (lm) 18800
Blu lumen (lm) 4000
White lumen (lm) 24800
Lenses (upper head) 6°, 10°, 15°, 25°, 40°, 60°
Lenses (lower head) 6°, 10°, 15°, 25°, 40°, 60°
Filters upper head (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter 60° x n° (n° = native lens) vertical
Filters lower head (optional) None, Elliptical projection filter 60° x 1° (1° = native lens) horizontal, Elliptical projection filter 60° x 1° (1° = native lens) vertical
Connectors and cables Main Power: 3x1,5mm cable, DMX signal: 4pin IP67 connector (male-female)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions LED display with flip function, Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS + touch control panel
DMX channels 13ch - 8ch - 4ch
Input range 120 - 277 VAC; 47/63 Hz
Power max (W) 600
Current 2,5A@230VAC
Inrush current 120A@230V
Materials Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
IP protection rating 67
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 657 x 182 x 641
Weight (Kgs) 32
Product Category Wall Washer
540-BD (art.900107) No, Yes
540-AG (art.900007) No, Yes
540LED-FROST (art.900409) No, Yes
CLAMP/C (art.900516) No, Yes
FFB (art.900517) No, Yes
SAFETY WIRE/C (art.900523) No, Yes
CCLED CASEx2 (art. a richiesta) Flight Case No, Yes
Contact Us


Hi-Power two headed colorchanger even more powerful. LEds are driven and can be actioned separately.  Nr. 80 Hi-Power LEDs.  IP 67protection rate.  Possibility to set up different lenses on each head.
