DOT POB M connectors (art. 231410)

https://www.studiodue.com/web/image/product.template/2924/image_1920?unique=a883056

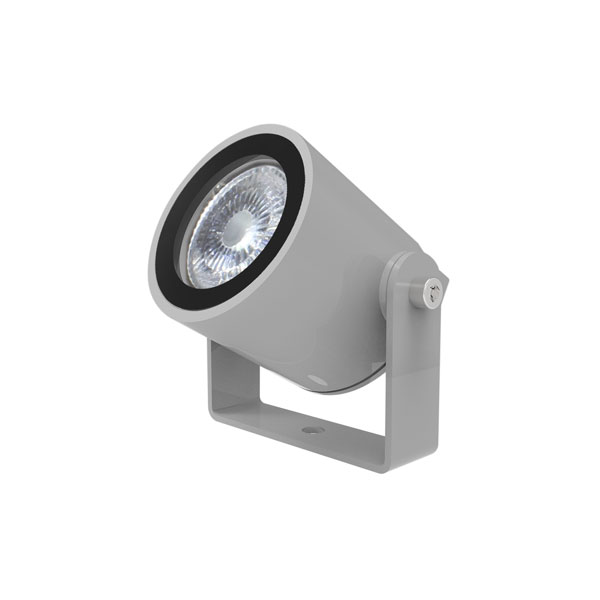

Small IP67 professional 230V Monochromatic LED spotlight with on-board DMX and power supply (POB), born to create decorative effects and architectural installations. Version with hybrid cable and IN/OUT connectors.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • CRI
  • Lenses
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Inrush current
  • Tilt
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6000K
Number of LEDs 1
LED expected lifetime (hrs) 50000
Lumen max source (lm) 500
CRI >70 (on request >80, >90)
Lenses 10°, 15°, 25°, 40°, 60°
Connectors and cables Power cable 3x0.75mm 1,5mt, DMX signal IN/OUT 3pins IP67 connectors
Control type DMX - RDM
Functions Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function
Setup RDM/DRS
DMX channels 3ch - 1ch
Input range 90 - 305 VAC
Power max (W) 5
Current 25mA@230VAC
Inrush current 40A@230V
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Colour finishing Grey RAL 9006 (standard) , Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
Tilt 270°
IP protection rating 67
IK grade protection 08
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 105x70x115
Weight (Kgs) 0.8
Mounting systems Surface
Product Category Spot
Contact Us


Small IP67 professional 230V Monochromatic LED spotlight with on-board DMX and power supply (POB), born to create decorative effects and architectural installations. Version with hybrid cable and IN/OUT connectors.
