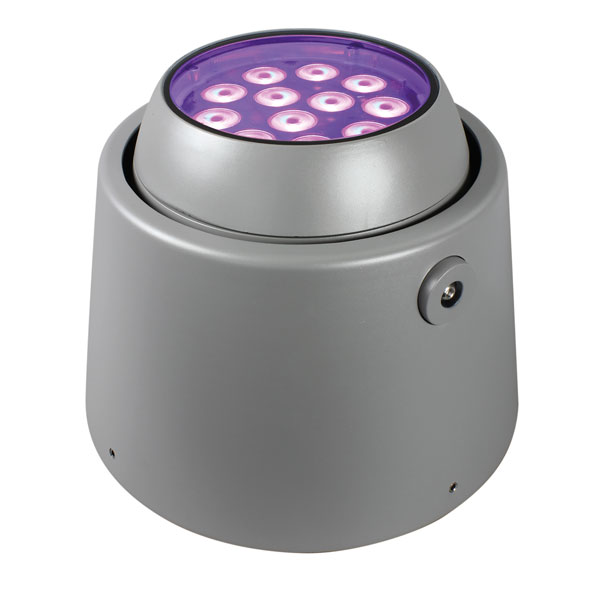

DOME RGBW (it. 220710)

https://www.studiodue.com/web/image/product.template/1685/image_1920?unique=5a91a4b

Realized for being used where inground fixtures can not be placed to achieve a similar effect. RGBW version, RDM-DMX protocol. Manual Tilt +/ - 40°

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • DMX channels
  • Functions
  • Setup
  • Input range
  • Power max (W)
  • Current
  • Inrush current
  • IP protection rating
  • Mounting systems
  • Tilt
  • Marine Grade treatment
  • Weight (Kgs)
  • Dimensions d x h (mm)
  • Product Category
  • Colour finishing
  • IK grade protection
  • Materials

This combination does not exist.

Contact Us


Specifications

Lighting source
LED type RGBW5050MULTICHIP
Number of LEDs 12
LED expected lifetime (hrs) 50000
Lumen max source (lm) 4150
Red lumen (lm) 750
Green lumen (lm) 1800
Blu lumen (lm) 250
White lumen (lm) 1600
Optics
Lenses 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connections
Connectors and cables Main Power: 3x1mm cable H05 1,5mt, DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female)
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions Dedicated DMX channel for white balance from 2900K to 13000K, Dedicated DMX channel for macro, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
DMX channels 10ch - 9ch - 5ch - 4ch
Setup RDM/DRS
Power supply
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 60
Current 0,25A@230VAC
Inrush current 50A@230V
Physical
Marine Grade treatment None, Yes
Materials Ultra clear 4mm tempered glass, All aluminium alloy
IP protection rating 67
Mounting systems Surface
Tilt -40° / +40°
Weight (Kgs) 9
Dimensions d x h (mm) 325 x 250
Product Category Spot
Colour finishing Grey RAL 9006 (standard)
IK grade protection 08
