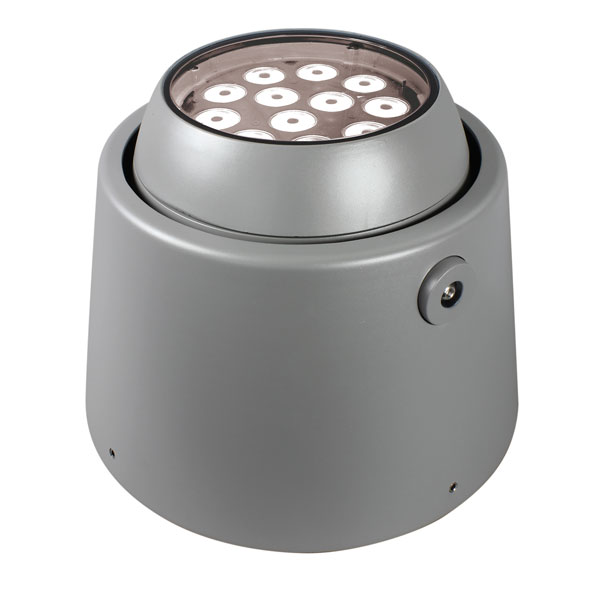

DOME M DALI (it. 222720)
Realized for being used where inground fixtures can not be placed to achieve a similar effect. Monochromatic DALI version. Manual tilt +/ - 40°
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 12 |
| Lumen max source (lm) | 6000 |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H05 1,5mt, DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female) |
| Control | |
|---|---|
| Control type | DALI DT6 |
| Functions and Setup | |
|---|---|
| Setup | DALI |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 42 |
| Current | 0,18A@230VAC |
| Physical | |
|---|---|
| Marine Grade treatment | None, Yes |
| Materials | Ultra clear 4mm tempered glass, All aluminium alloy |
| IP protection rating | 67 |
| Mounting systems | Surface |
| Tilt | -40° / +40° |
| Weight (Kgs) | 9 |
| Dimensions d x h (mm) | 325 x 250 |
| Product Category | Spot |
| Colour finishing | Grey RAL 9006 (standard) |
| IK grade protection | 08 |
