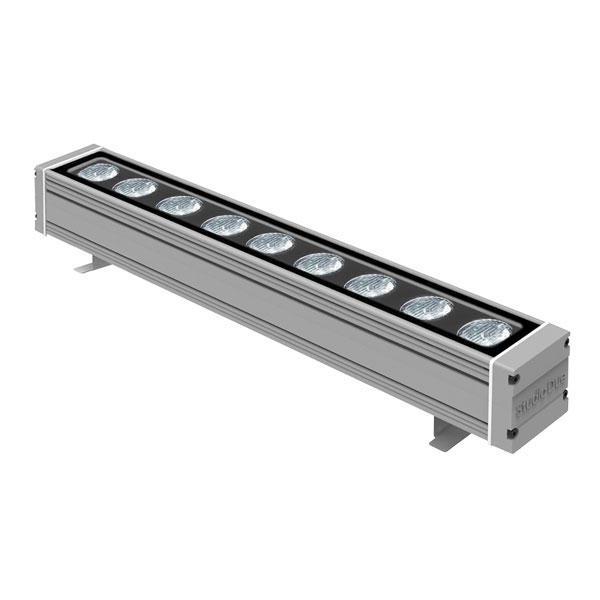

COMPACTBAR WB 50cm (it. 212312)
Compact dinamic LED linear bar with 38mm lenses. IP67 protection rating. DMX-RDM. Standard 100cm. Available lenghts (on request): 50 cm 89 lenses), 100 cm (18 lenses) and 150 cm (27 lenses)
Documents
Compact dinamic LED linear bar with 38mm lenses. IP67 protection rating. DMX-RDM. Standard 100cm. Available lenghts (on request): 50 cm 89 lenses), 100 cm (18 lenses) and 150 cm (27 lenses)
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | CW+WW (5) |
| Lumen max source (lm) | 4050 |
| Number of LEDs | 9 (2700K) + 9 (6500K) |
| Optics | |
|---|---|
| Lenses | 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3pin IP67 connector (male-female), DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female) |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request), DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | RDM/DRS |
| DMX channels | 4ch - 2ch - 1ch |
| Power supply | |
|---|---|
| Input range | 200 - 240 VAC; 47/63 Hz |
| Power max (W) | 30 |
| Inrush current | 0,15A@230V |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Metal grey 7011 (standard), Black RAL 9005 (optional) 1, Graphite gray, White RAL 9010 (optional) 1, Any RAL (optional) |
| Tilt | 160° |
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 540 x 71 x 115 |
| Weight (Kgs) | 3,2 |
| Product Category | Linear Bar |
