COMPACTBAR WB 100cm (it. 212315)

COMPACTBAR WB 100cm (it. 212315)

https://www.studiodue.com/web/image/product.template/1247/image_1920?unique=5a91a4b

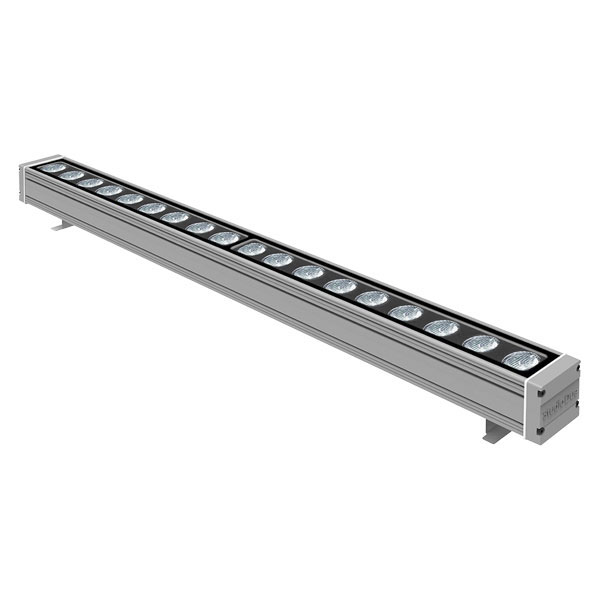

White Balance compact LED linear bar with 38 mm lenses. IP 67 protection rating. DMX-RDM. Standard 100 cm. Available lenghts on request 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses).

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • DMX channels
  • Input range
  • Power max (W)
  • Inrush current
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type CW+WW (5W)
Number of LEDs 18 (2700K) + 18 (6500K)
Lumen max source (lm) 8100
Lenses 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3pin IP67 connector (male-female), DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female)
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM, DMX - RDM + Wireless (on request), DALI DT6
Functions RDM/DRS
DMX channels 4ch - 2ch - 1ch
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 60
Inrush current 3A@230V
Mounting systems Surface, Truss (optional)
Colour finishing Metal grey 7011 (standard), Black RAL 9005 (optional) 1, Graphite gray, White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
IP protection rating 67
Sizes l x p x h (mm) 1035 x 71 x 115
Weight (Kgs) 4,5
Product Category Linear Bar
Contact Us


White Balance compact LED linear bar with 38 mm lenses. IP 67 protection rating. DMX-RDM. Standard 100 cm. Available lenghts on request 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses).
