COMPACTBAR RGBWA 50cm (it. 212012)

COMPACTBAR RGBWA 50cm (it. 212012)

https://www.studiodue.com/web/image/product.template/1291/image_1920?unique=712702b

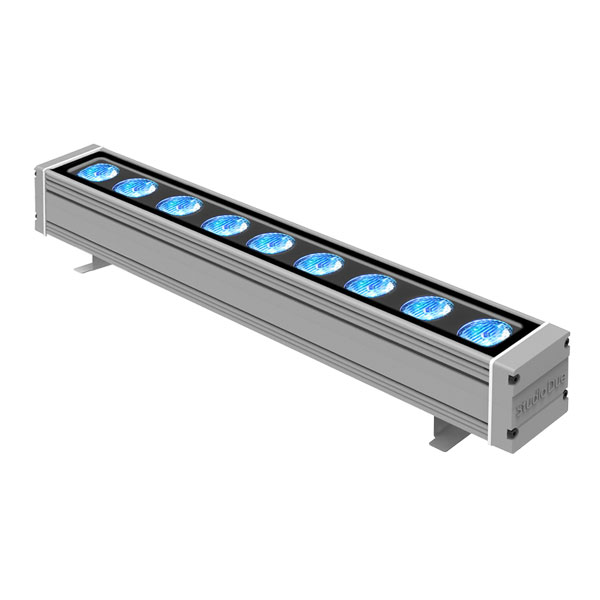

RGBWA compact LED linear bar with 42 mm lenses. IP 67 protection rating. DMX-RDM. Standard 100 cm. Available lenghts on request 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses).






Specifications

Lighting source
LED type RGBWA (8W)
Number of LEDs 9
Lumen source (lm) 4060
Red lumen (lm) 720
Green lumen (lm) 1260
Blu lumen (lm) 351
White lumen (lm) 1460
Amber lumen (lm) 620
Optics
Lenses 15°, 20°, 25°, 35°
Filters (optional) No filter, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connections
Connectors and cables Main Power: 3pin IP67 connector (male-female), DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female)
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions RDM/DRS, Wireless DMX receiver
DMX channels 10ch - 7ch - 6ch - 5ch
Power supply
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 40
Physical
Mounting systems Surface, Truss (optional)
_MARINE GRADE TREATMENT (art.900546) Standard finish, Marine grade treatment
Colour finishing Grey RAL 7011 (standard), Black RAL 9005 (optional), Graphite gray, White RAL 9010 (optional), Any RAL (optional)
Sizes l x p x h (mm) 540 x 71 x 115
Tilt 160°
Weight (Kgs) 3,2
Product Category Linear Bar
IP protection rating 67

This product is no longer available.
