COMPACTBAR RGBWA 150cm (it. 212017)

COMPACTBAR RGBWA 150cm (it. 212017)

https://www.studiodue.com/web/image/product.template/1244/image_1920?unique=5a91a4b

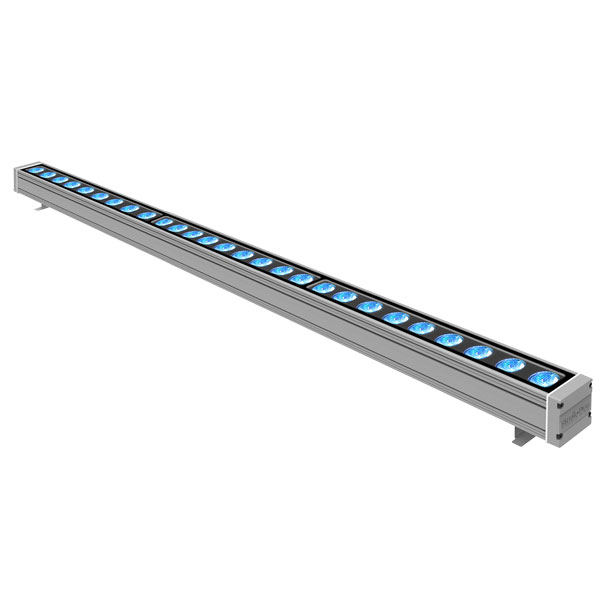

RGBWA compact LED linear bar with 42 mm lenses. IP 67 protection rating. DMX-RDM. Standard 100 cm. Available lenghts on request 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses). On request 150 cm.

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Amber lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Tilt
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type RGBW (8W)
Number of LEDs 27
Lumen max source (lm) 12900
Red lumen (lm) 2880
Green lumen (lm) 3780
Blu lumen (lm) 1053
White lumen (lm) 4380
Amber lumen (lm) 1860
Lenses 15°, 20°, 25°, 35°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3pin IP67 connector (male-female), DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions RDM/DRS, Wireless DMX receiver
Setup RDM/DRS
DMX channels 10ch - 7ch - 6ch - 5ch
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 120
Mounting systems Surface, Truss (optional)
Colour finishing Metal grey 7011 (standard), Black RAL 9005 (optional) 1, Graphite gray, White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
Tilt 160°
IP protection rating 67
Sizes l x p x h (mm) 1530 x 71 x 115
Weight (Kgs) 5,7
Product Category Linear Bar
Contact Us


RGBWA compact LED linear bar with 42 mm lenses. IP 67 protection rating. DMX-RDM. Standard 100 cm. Available lenghts on request 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses). On request 150 cm.
