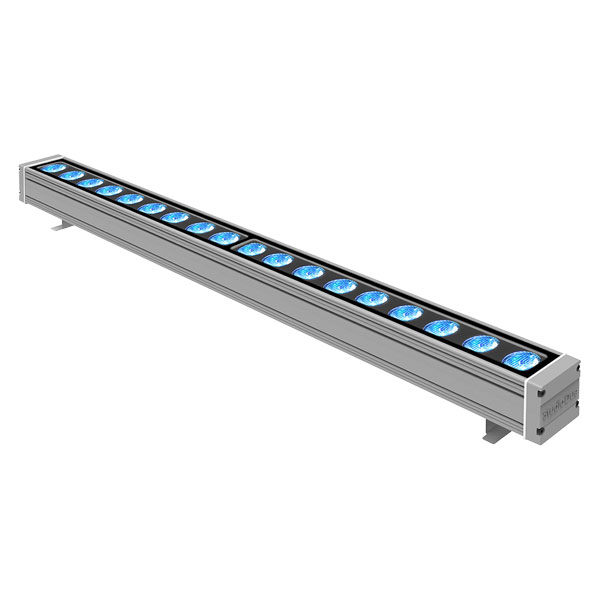

COMPACTBAR RGBWA 100cm (it. 212015)
RGBWA compact LED linear bar with 42 mm lenses . IP 67 protection rating. DMX - RDM. Standard 100 cm. Available lenghts 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses) .
| LED type | RGBWA (8W) |
| Number of LEDs | 18 |
| Lumen max source (lm) | 8120 |
| Red lumen (lm) | 1440 |
| Green lumen (lm) | 2520 |
| Blu lumen (lm) | 702 |
| White lumen (lm) | 2920 |
| Amber lumen (lm) | 1240 |
| Lenses | 15°, 20°, 25°, 35° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Connectors and cables | Main Power: 3pin IP67 connector (male-female), DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female) |
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions | RDM/DRS, Wireless DMX receiver |
| DMX channels | 10ch - 7ch - 6ch - 5ch |
| Input range | 200 - 240 VAC; 47/63 Hz |
| Power max (W) | 80 |
| Current | 0,34@230VAC |
| Mounting systems | Surface, Truss (optional) |
| Colour finishing | Metal grey 7011 (standard), White RAL 9010 (standard) , Black RAL 9005 (optional) 1, Graphite gray, Any RAL (optional) |
| Marine Grade treatment | None, Yes |
| Tilt | 160° |
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 1035 x 71 x 115 |
| Weight (Kgs) | 4,5 |
| Product Category | Linear Bar |
Documents
RGBWA compact LED linear bar with 42 mm lenses . IP 67 protection rating. DMX - RDM. Standard 100 cm. Available lenghts 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses) .
