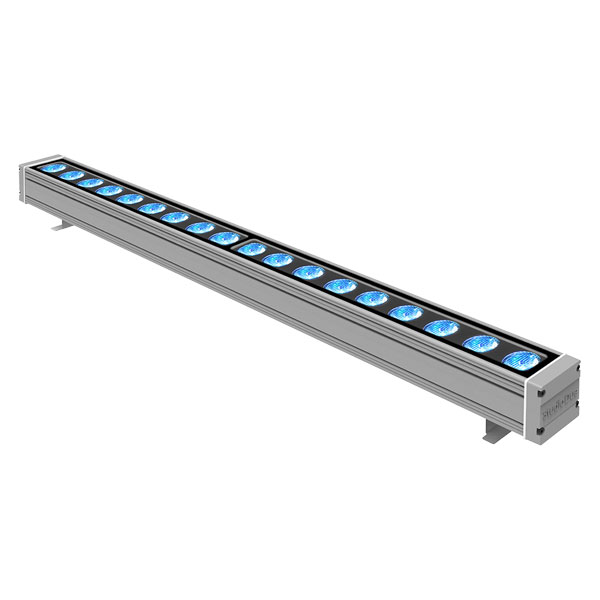

COMPACTBAR RGBWA 100cm (it. 212015)

COMPACTBAR RGBWA 100cm (it. 212015)

https://www.studiodue.com/web/image/product.template/1245/image_1920?unique=1b85e6c

RGBWA compact LED linear bar with 42 mm lenses . IP 67 protection rating. DMX - RDM. Standard 100 cm. Available lenghts 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses) .






Specifications

Lighting source
LED type RGBWA (8W)
Number of LEDs 18
Lumen source (lm) 8120
Red lumen (lm) 1440
Green lumen (lm) 2520
Blu lumen (lm) 702
White lumen (lm) 2920
Amber lumen (lm) 1240
Optics
Lenses 15°, 20°, 25°, 35°
Filters (optional) No filter, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connections
Connectors and cables Main Power: 3pin IP67 connector (male-female), DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female)
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions RDM/DRS, Wireless DMX receiver
DMX channels 10ch - 7ch - 6ch - 5ch
Power supply
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 80
Current 0,34@230VAC
Physical
Mounting systems Surface, Truss (optional)
_MARINE GRADE TREATMENT (art.900546) Standard finish, Marine grade treatment
Colour finishing Grey RAL 7011 (standard), White RAL 9010 (standard) , Black RAL 9005 (optional), Graphite gray, Any RAL (optional)
Sizes l x p x h (mm) 1035 x 71 x 115
Tilt 160°
Weight (Kgs) 4,5
Product Category Linear Bar
IP protection rating 67

This product is no longer available.
