COMPACTBAR RGBW 50cm (it. 235012)

COMPACTBAR RGBW 50cm (it. 235012)

https://www.studiodue.com/web/image/product.template/2909/image_1920?unique=f6decc3

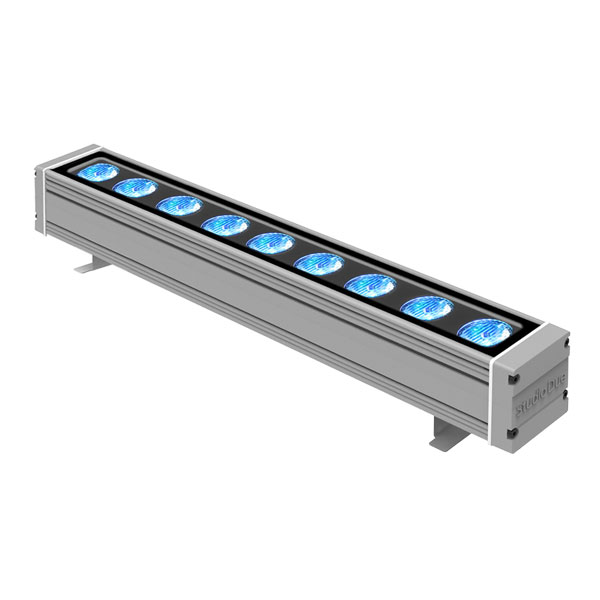

RGBW compact LED linear bar with 38 mm lenses . IP 67 protection rating. DMX - RDM. Standard 100 cm. Available lenghts 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses) .

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Power Factor
  • Tilt
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type RGBW (8W)
Number of LEDs 9
Lumen max source (lm) 3500
Red lumen (lm) 760
Green lumen (lm) 1350
Blu lumen (lm) 250
White lumen (lm) 1350
Lenses 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3pin IP67 connector (male-female), DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female)
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions RDM/DRS, Wireless DMX receiver
DMX channels 9ch - 6ch - 5ch - 4ch
Input range Universale 200 - 240 Vac; 47/64 Hz
Power max (W) 40
Current 0,19A@230VAC
Power Factor PF>0,95@230VAC
Mounting systems Surface, Truss (optional)
Colour finishing Metal grey 7011 (standard), White RAL 9010 (standard) , Black RAL 9005 (optional) 1, Graphite gray, Any RAL (optional)
Marine Grade treatment None, Yes
Tilt 160°
IP protection rating 67
Sizes l x p x h (mm) 540 x 71 x 115
Weight (Kgs) 3,2
Product Category Linear Bar
