COMPACTBAR RGBW 50cm (it. 235012)

COMPACTBAR RGBW 50cm (it. 235012)

https://www.studiodue.com/web/image/product.template/2909/image_1920?unique=6f00fc7

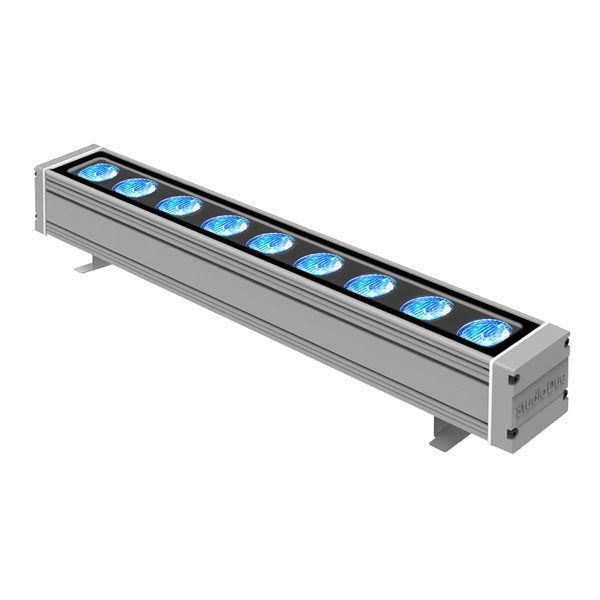

RGBW compact LED linear bar with 38 mm lenses . IP 67 protection rating. DMX - RDM. Standard 100 cm. Available lenghts 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses) .






Specifications

Lighting source
LED type RGBW (8W)
Number of LEDs 9
Lumen source (lm) 3500
Red lumen (lm) 760
Green lumen (lm) 1350
Blu lumen (lm) 250
White lumen (lm) 1350
Optics
Lenses 8°, 10°x30°, 10°x50°, 15°, 25°, 40°, 60°
Filters (optional) No filter, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connections
Connectors and cables Main Power: 3pin IP67 connector (male-female), DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female)
Connectors and cables (optional) Cable: type and length (optional)
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions RDM/DRS, Wireless DMX receiver
DMX channels 9ch - 5ch - 4ch
Power supply
Input range Universale 200 - 240 Vac; 47/64 Hz
Power Factor PF>0,95@230VAC
Power max (W) 40
Current 0,19A@230VAC
Physical
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 7011 (standard), White RAL 9010 (standard) , Black RAL 9005 (optional), Graphite gray, Any RAL (optional)
Sizes l x p x h (mm) 540 x 71 x 115
Tilt 160°
Weight (Kgs) 3,2
Product Category Linear Bar
IP protection rating 67
Optional/Accessories
_MARINE GRADE TREATMENT (art.900546) -, Marine grade treatment
