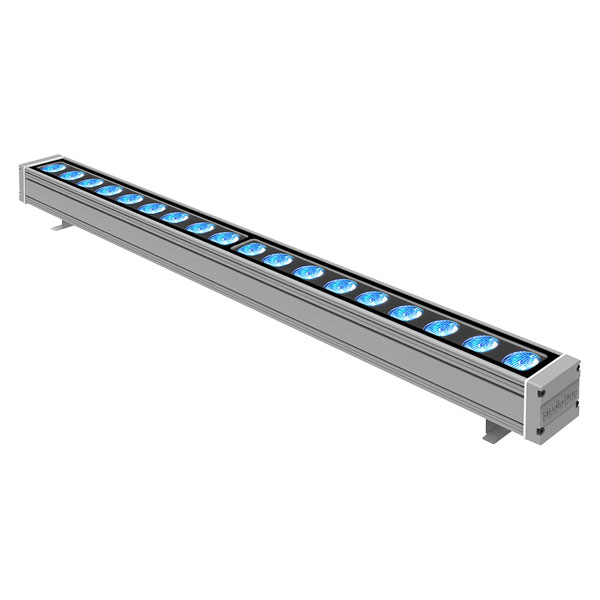

COMPACTBAR RGBW 100cm (it. 235015)

COMPACTBAR RGBW 100cm (it. 235015)

https://www.studiodue.com/web/image/product.template/2883/image_1920?unique=daaf775

RGBW compact LED linear bar with 38 mm lenses . IP 67 protection rating. DMX - RDM. Standard 100 cm. Available lenghts 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses) .

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • DMX channels
  • Input range
  • Power max (W)
  • Power Factor
  • Tilt
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type RGBW (8W)
Number of LEDs 18
Lumen max source (lm) 7000
Red lumen (lm) 1520
Green lumen (lm) 2700
Blu lumen (lm) 500
White lumen (lm) 2700
Lenses 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3pin IP67 connector (male-female), DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female)
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions RDM/DRS, Wireless DMX receiver
DMX channels 9ch - 6ch - 5ch - 4ch
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 85
Power Factor PF>0,95@230VAC
Mounting systems Surface, Truss (optional)
Colour finishing Metal grey 7011 (standard), White RAL 9010 (standard) , Black RAL 9005 (optional) 1, Graphite gray, Any RAL (optional)
Marine Grade treatment None, Yes
Tilt 160°
IP protection rating 67
Sizes l x p x h (mm) 1035 x 71 x 115
Weight (Kgs) 4,5
Product Category Linear Bar
