Product Description

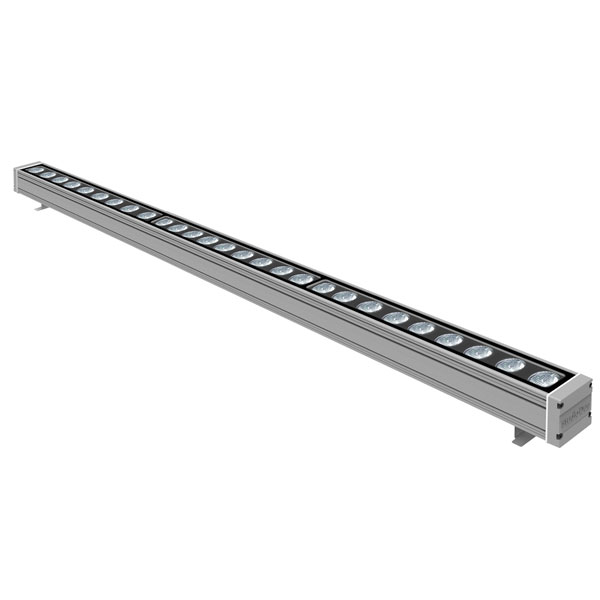

Monochromatic compact LED linear bar with 38 mm lenses. IP 67 protection rating. Plug-in version. Standard 100 cm. Available lenghts on request 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses)


Downloads

UM_COMPACTBAR series.pdf
Technical specification
LED type
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
Number of LEDs
27
Lumen MAX
12150
Lenses
10°x50°
15°
15°x30°
25°
40°
60°
Filters (optional)
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Connectors and cables
Main Power: 3pin IP67 (male-female)
Connettori e cavi (optional)
Cable: type and length (optional)
Control type
Plug-in
Functions
N/A
Input range
200 - 240 VAC; 47/63 Hz
Power (W)
90
Inrush current
0,45A@230V
Mounting systems
Surface
Truss (optional)
Colour finishing
Metal grey 7011 (standard)
RAL 7011
Black RAL 9005 (optional)
RAL 9005
Graphite gray
Graphite
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
Marine Grade treatment
None
Yes
IP protection rating
67
Sizes l x p x h (mm)
1530 x 71 x 115
Weight (Kgs)
5,7
