COMPACT 80 RGBW (it. 230310)

COMPACT 80 RGBW (it. 230310)

https://www.studiodue.com/web/image/product.template/3302/image_1920?unique=004f9d0

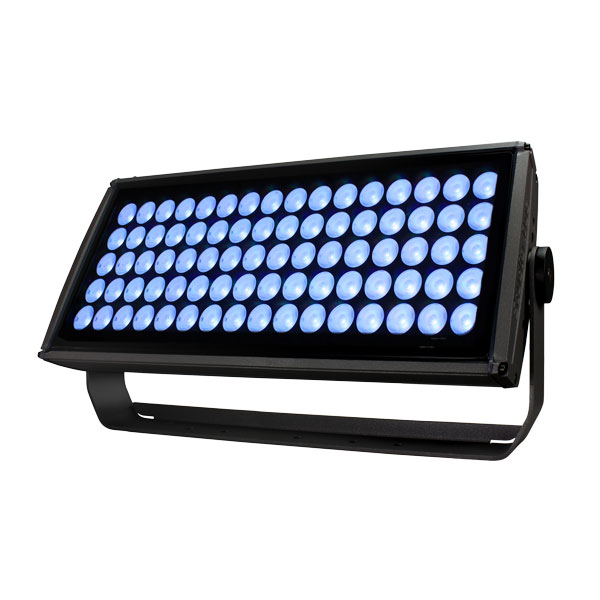

Compact long distance LED lighting Hi Power RGBW IP67 colorchanger. 80 powerful RGBW LEDs, 38mm lenses

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • DMX channels
  • Functions
  • Setup
  • Input range
  • Power max (W)
  • Current
  • Power Factor
  • IP protection rating
  • Sizes l x p x h (mm)
  • Mounting systems
  • Marine Grade treatment
  • Weight (Kgs)
  • Product Category
  • Colour finishing
  • Materials
  • Accessories - Flight case
  • Accessories - Barn door
  • Accessories - Anti glare

This combination does not exist.

Contact Us


Specifications

Lighting source
LED type RGBW (8W)
Number of LEDs 80
LED expected lifetime (hrs) 50000
Lumen max source (lm) 30800
Red lumen (lm) 6600
Green lumen (lm) 11700
Blu lumen (lm) 2150
White lumen (lm) 12000
Optics
Lenses 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connections
Connectors and cables Main Power: 3x1,5mm cable, DMX signal: 4pin IP67 connector (male-female)
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
DMX channels 9ch - 6ch - 5ch - 4ch
Setup RDM/DRS
Power supply
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 340
Current 1,5A@230VAC
Power Factor PF>0,95@230VAC
Physical
Mounting systems Surface, Truss (optional)
Marine Grade treatment None, Yes
Colour finishing Black RAL 9005 (standard) , Graphite gray, Metal grey 7011 (optional), White RAL 9010 (optional), Any RAL (optional)
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
IP protection rating 67
Sizes l x p x h (mm) 720 x 120 x 320
Weight (Kgs) 15
Product Category Wall Washer
Optional/Accessories
Accessories - Flight case None, Yes
Accessories - Barn door None, Yes
Accessories - Anti glare None, Yes
