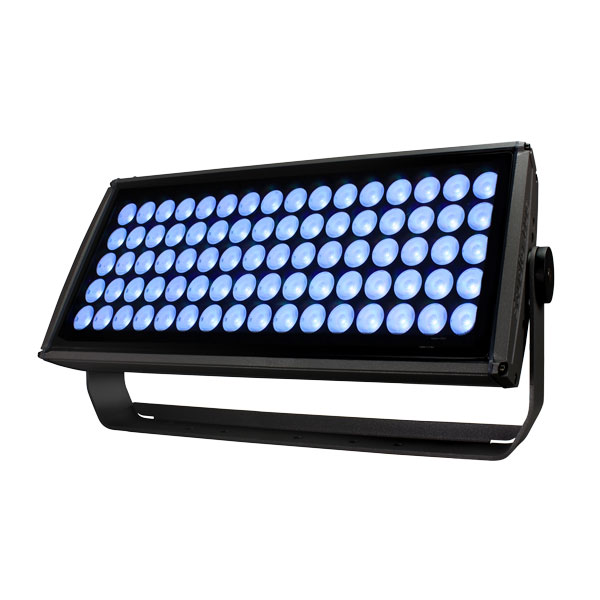

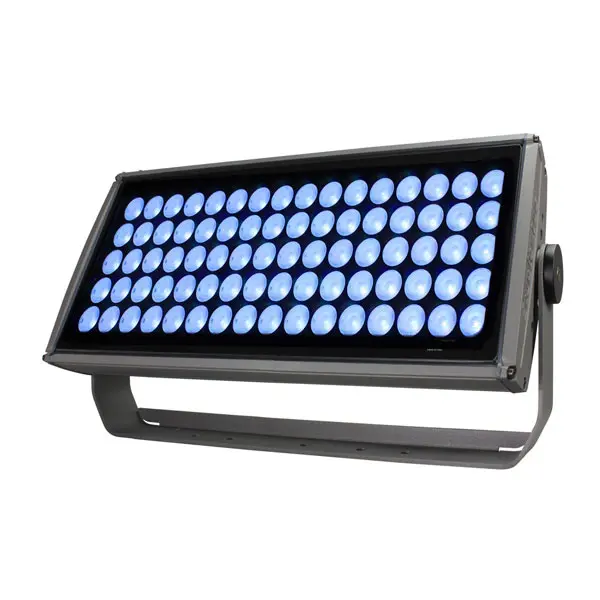

COMPACT 80 RGBW (it. 230310)

COMPACT 80 RGBW (it. 230310)

https://www.studiodue.com/web/image/product.template/3302/image_1920?unique=67ac06c

Compact long distance LED lighting Hi Power RGBW IP67 colorchanger. 80 powerful RGBW LEDs, 38mm lenses

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Power Factor
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • Accessories - Flight case
  • Accessories - Anti glare
  • Accessories - Barn door

This combination does not exist.

LED type RGBW (8W)
Number of LEDs 80
LED expected lifetime (hrs) 50000
Lumen max source (lm) 30800
Red lumen (lm) 6600
Green lumen (lm) 11700
Blu lumen (lm) 2150
White lumen (lm) 12000
Lenses 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connectors and cables Main Power: 3x1,5mm cable, DMX signal: 4pin IP67 connector (male-female)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS
DMX channels 9ch - 6ch - 5ch - 4ch
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 340
Current 1,5A@230VAC
Power Factor PF>0,95@230VAC
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Black RAL 9005 (standard) , Graphite gray, Metal grey 7011 (optional), White RAL 9010 (optional), Any RAL (optional)
Marine Grade treatment None, Yes
IP protection rating 67
Sizes l x p x h (mm) 720 x 120 x 320
Weight (Kgs) 15
Product Category Wall Washer
Accessories - Flight case None, Yes
Accessories - Anti glare None, Yes
Accessories - Barn door None, Yes
