Product Description


Downloads

UM_COMPACT series.pdf

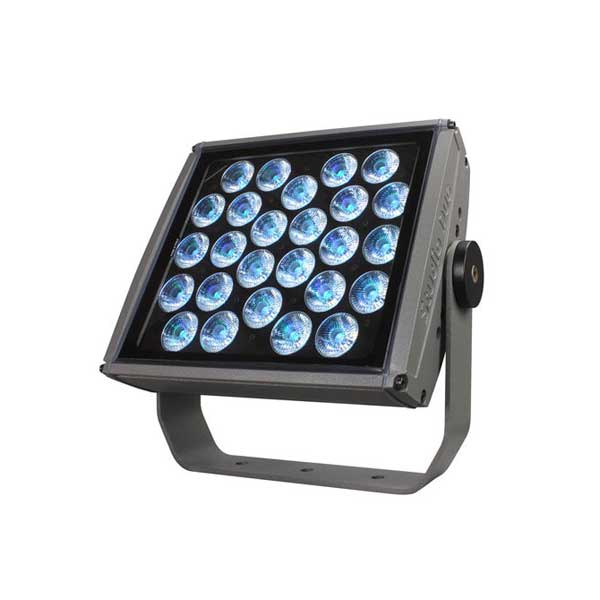

ART.213010 - COMPACT 26 RGBWA.zip
Technical specification
Icon attribute
Icon attribute
Icon attribute
LED type
RGBWA
Number of LEDs
26
LED expected lifetime (hrs)
50000
Lumen MAX
11000
Red lumen (lm)
2000
Green lumen (lm)
3500
Blu lumen (lm)
1000
White lumen (lm)
4000
Amber lumen (lm)
1500
Lenses
15°
20°
25°
35°
Filters
None
f 60°
f 100°
f 15°x 60°
frost 65°
Connectors and cables
Main Power: 3x1,5mm cable
DMX signal: 4pin IP67 connector (male-female)
Control type
Protocol USITT DMX512 - RDM
Protocol USITT DMX512 - RDM + Wireless (on request)
Functions
Dedicated DMX channel for white balance from 2900K to 13000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
Setup
RDM/DRS
DMX channels
10ch - 7ch - 6ch - 5ch
Input range
200 - 240 VAC; 47/63 Hz
Power (W)
100
Current
Power Factor
Materials
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
Mounting systems
Surface
Truss (optional)
Colour finishing
Metal grey 7011 (standard)
RAL 7011
Black RAL 9005 (optional)
RAL 9005
Graphite gray (optional)
Graphite
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
Marine Grade treatment
None
Yes
IP protection rating
IP 67
Sizes l x p x h (mm)
356 x 120 x 320
Weight (Kgs)
7,5
Accessories - Flight case
None
Yes
Accessories - Anti glare
None
Yes
Accessories - Barn door
None
Yes
