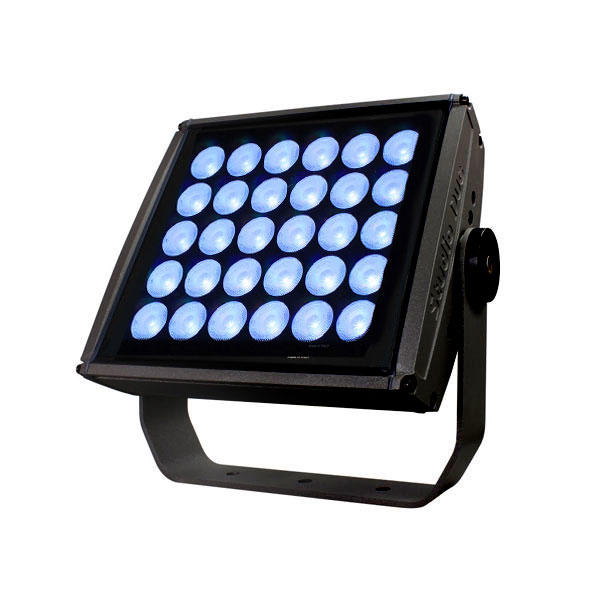

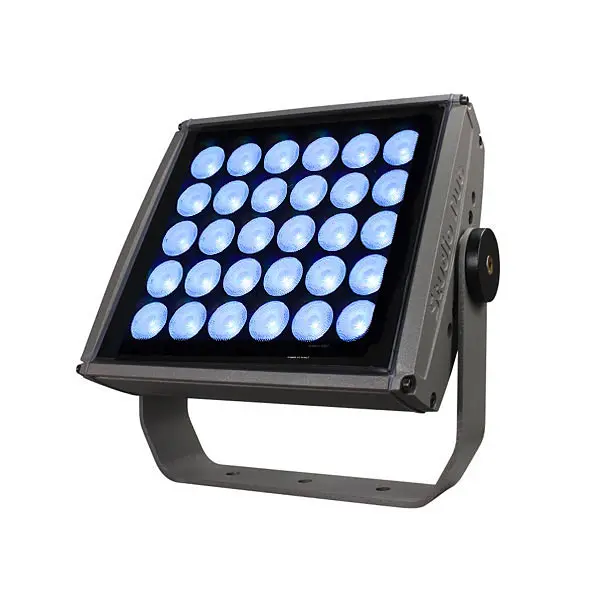

COMPACT 26 RGBW (it. 230110)
Compact long distance LED Lighting Hi Power RGBW IP67 colorchanger. 30 powerful RGBW LEDs , 38mm lenses
Documents
Compact long distance LED Lighting Hi Power RGBW IP67 colorchanger. 30 powerful RGBW LEDs , 38mm lenses
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBW (8W) |
| Number of LEDs | 30 |
| LED expected lifetime (hrs) | 50000 |
| Lumen max source (lm) | 11500 |
| Red lumen (lm) | 2500 |
| Green lumen (lm) | 4400 |
| Blu lumen (lm) | 800 |
| White lumen (lm) | 4500 |
| Optics | |
|---|---|
| Lenses | 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1,5mm cable, DMX signal: 4pin IP67 connector (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | Dedicated DMX channel for white balance from 2900K to 13000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function |
| DMX channels | 9ch - 6ch - 5ch - 4ch |
| Setup | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 200 - 240 VAC; 47/63 Hz |
| Power max (W) | 110 |
| Current | 0,45A@230VAC |
| Power Factor | PF>0,95@230VAC |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Black RAL 9005 (standard) , Graphite gray, Metal grey 7011 (optional), White RAL 9010 (optional), Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 356 x 120 x 320 |
| Weight (Kgs) | 7,5 |
| Product Category | Wall Washer |
| Optional/Accessories | |
|---|---|
| Accessories - Flight case | None, Yes |
| Accessories - Barn door | None, Yes |
| Accessories - Anti glare | None, Yes |
| Others | |
|---|---|
| 280LED-FROST (art.900410) | No, Yes |
| 280-BD (art.900108) | No, Yes |
| 280-AG (art.900008) | No, Yes |
| CLAMP/C (art.900516) | No, Yes |
| FFB (art.900517) | No, Yes |
| SAFETY WIRE/C (art.900523) | No, Yes |
