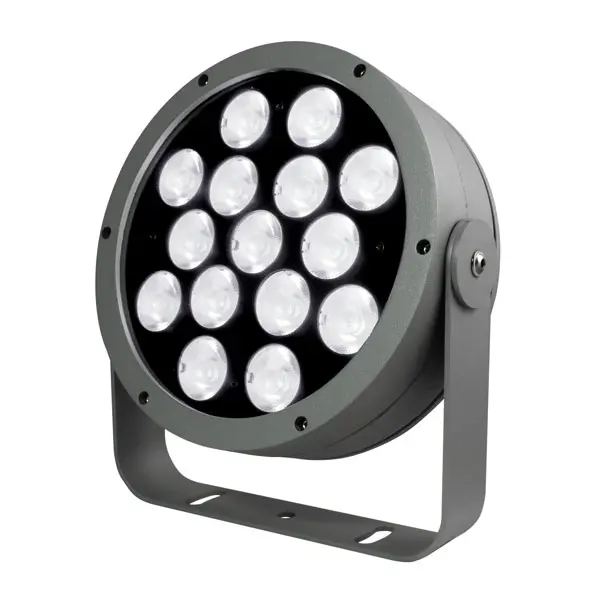

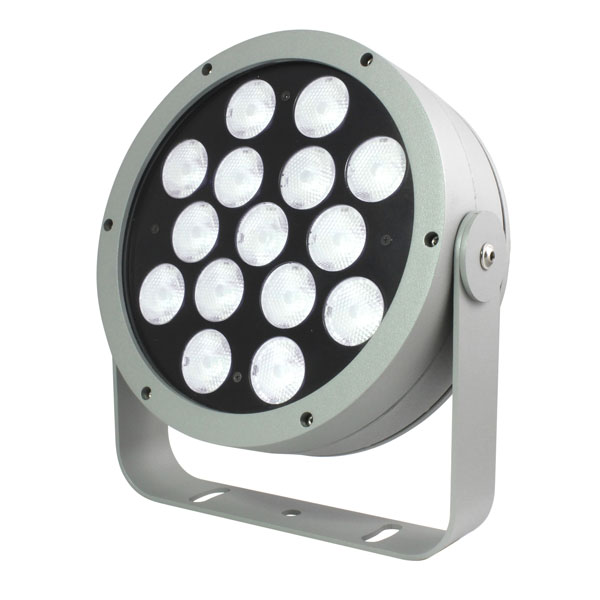

CLEVER SPOT 15 M DALI (it.250920)
Versione grande della serie CLEVER SPOT con 15 LEDs Hi Power Monocromatici. Versione DALI. Grado di protezione IP 67.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 15 |
| LED expected lifetime (hrs) | 50000 |
| Lumen max source (lm) | 7500 |
| Lumen max output (lm) | 5930 |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: cable 3x0,75mm, DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female) |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Control | |
|---|---|
| Control type | DALI DT6 |
| Functions and Setup | |
|---|---|
| Setup | DALI |
| Power supply | |
|---|---|
| Input range | 120 - 240 VAC; 47/63 Hz |
| Power max (W) | 50 |
| Current | 0,23A@230VAC |
| Power Factor | PF>0,95@230VAC |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Grey RAL 9006 (standard) , Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| Operating temperature | -30°C +45°C |
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 260 x 75 x 270 |
| Tilt | 360° |
| Weight (Kgs) | 3,2 |
| Product Category | Spot |
| IK grade protection | 07 |
| Others | |
|---|---|
| CLAMP/C (art.900516) | No, Yes |
| SAFETY WIRE/C (art.900523) | No, Yes |
| CLEVER SPOT1-SN (art.900207) | No, Yes |
| CLEVER SPOT1-CL (art.900307) | No, Yes |
