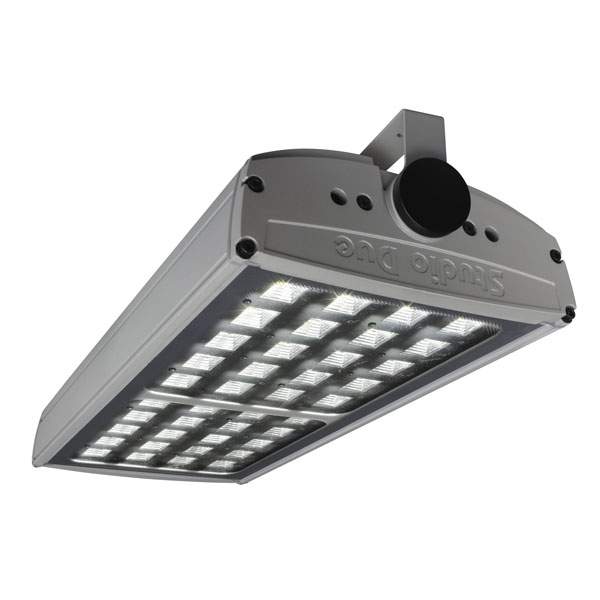

CL 80WR high bay (it.142700)

https://www.studiodue.com/web/image/product.template/205/image_1920?unique=5a91a4b

IP 67 rated, this monochromatic high bay fixture utilizes n. 80 high brightness 5W LEDs combined with an innovative optic system with antiglare reflectors.

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K
Number of LEDs 80 White (5W)
Lumen max source (lm) 25000
Lenses 70°x55° (antiglare square reflectors)
Control type DMX - RDM, DMX - RDM + Wireless (on request), DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request)
Functions RDM/DRS
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 200
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1
Marine Grade treatment None, Yes
IP protection rating 67
Sizes l x p x h (mm) 616 x 265 x 172
Weight (Kgs) 12,5
Product Category High Bay


IP 67 rated, this monochromatic high bay fixture utilizes n. 80 high brightness 5W LEDs combined with an innovative optic system with antiglare reflectors.
