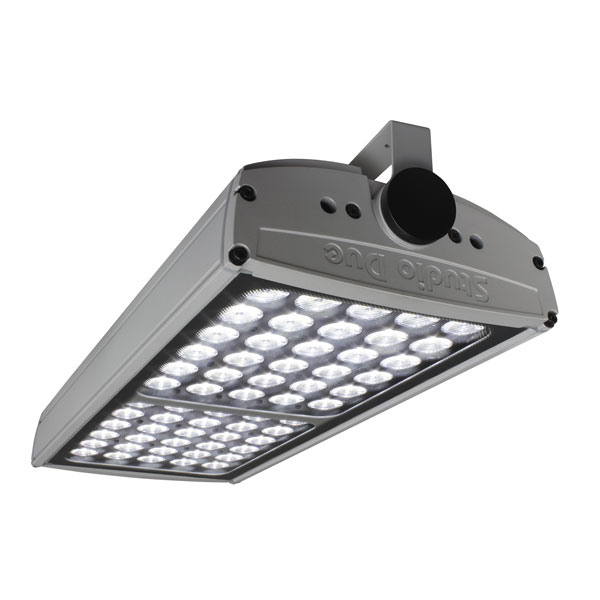

CL 60WL high bay (it. 142800)

CL 60WL high bay (it. 142800)

https://www.studiodue.com/web/image/product.template/204/image_1920?unique=5a91a4b

IP 67 rated, this monochromatic high bay fixture utilizes n. 60 white high brightness 5W LEDs combined with an high efficient optic system for a monochromatic rectangular projection 20° x 30°.

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K
Number of LEDs 60 White (5W)
Lumen max source (lm) 24000
Lenses 4° , 8°, 10°, 15°, 15°x30°, 25°, 40°, 60°
Control type DMX - RDM, DMX - RDM + Wireless (on request), DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request)
Functions RDM/DRS
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 200
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1
Marine Grade treatment None, Yes
IP protection rating 67
Sizes l x p x h (mm) 616 x 265 x 172
Weight (Kgs) 12,5
Product Category High Bay
Contact Us


IP 67 rated, this monochromatic high bay fixture utilizes n. 60 white high brightness 5W LEDs combined with an high efficient optic system for a monochromatic rectangular projection 20° x 30°.
