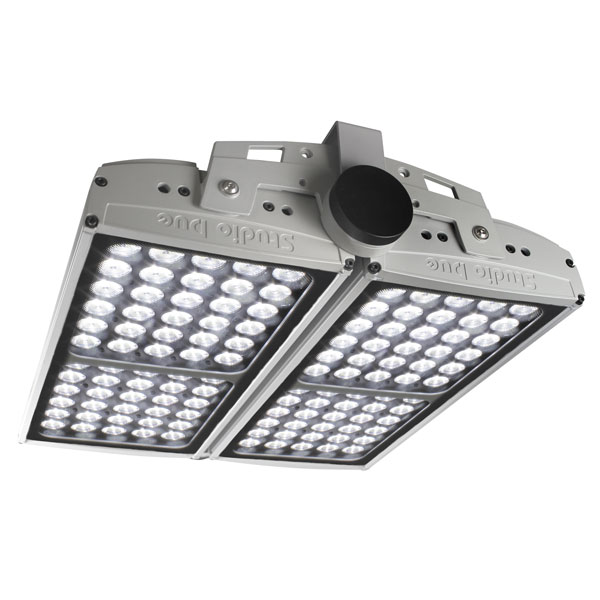

CL 120WL high bay (it.142600)
IP67 rated this monochromatic twin head high bay fixture utilizes n. 120 high brightness 5W LEDs combined with an high efficient optic system for a monochromatic rectangular projection 20° x 30°.
Documents
IP67 rated this monochromatic twin head high bay fixture utilizes n. 120 high brightness 5W LEDs combined with an high efficient optic system for a monochromatic rectangular projection 20° x 30°.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K |
| Lumen max source (lm) | 48000 |
| Number of LEDs | 120 White (5W) |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request), DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 400 |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1 |
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 651 x 540 x 166 |
| Weight (Kgs) | 25 |
| Product Category | High Bay |
