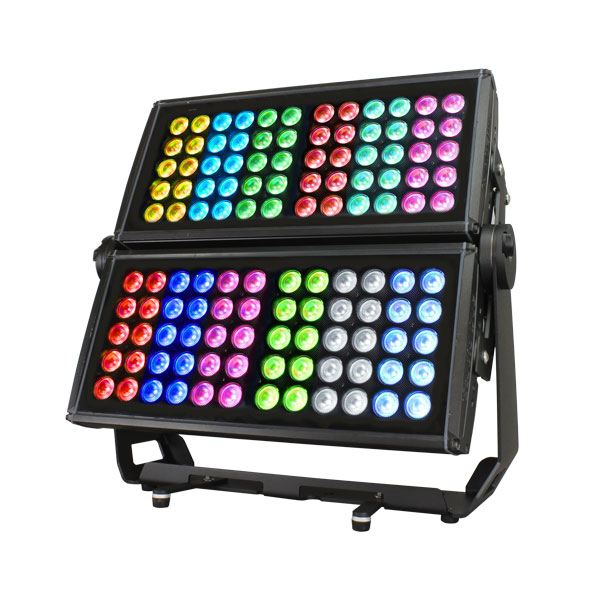

CITYCOLOR12 RGBW (it.234110)
R12. RGBW (with 4000K white LED) wash/flood light twin headed fixture with 12 independent segment control 10 LEDs, which can be controlled individually to create engaging eye candy that enhances any live production. RDM/DRS. Touch control panel. CitycoloR12 RGBW has IP65 protection rating.
R12. RGBW (with 4000K white LED) wash/flood light twin headed fixture with 12 independent segment control 10 LEDs, which can be controlled individually to create engaging eye candy that enhances any live production. RDM/DRS. Touch control panel. CitycoloR12 RGBW has IP65 protection rating.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBW5050MULTICHIP |
| Colour temperature range (K) | 2000 - 10000 |
| Red lumen (lm) | 24000 |
| Green lumen (lm) | 33000 |
| Blu lumen (lm) | 7100 |
| White lumen (lm) | 44000 |
| Number of LEDs | 120 |
| LED expected lifetime (hrs) | 50000 |
| Lumen max source (lm) | 97000 |
| Optics | |
|---|---|
| Lenses (upper head) | 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Lenses (lower head) | 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters upper head (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter 60° x n° (n° = native lens) vertical |
| Filters lower head (optional) | None, Elliptical projection filter 60° x 1° (1° = native lens) horizontal, Elliptical projection filter 60° x 1° (1° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables DMX | DMX signal: XLR5pin IP65 connector (male-female) |
| Connectors and cables MAINS | Main Power: PowerCon IP65 connector (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | LED display with flip function, Dedicated DMX channel for white balance from 2000K to 10000K, Dedicated DMX channel for macro, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function |
| DMX channels | 54ch - 48ch - 9ch - 4ch |
| Setup | RDM/DRS + touch control panel |
| Power supply | |
|---|---|
| Power max (W) | 1200 |
| Input range | 180 - 305 VAC; 47/63 Hz |
| Current | 5,2A@230VAC |
| Power Factor | PF>0,95@230VAC |
| Physical | |
|---|---|
| Marine Grade treatment | None, Yes |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| Colour finishing | Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional) |
| Sizes l x p x h (mm) | 680 x 170 x 595 |
| Weight (Kgs) | 30 |
| IP protection rating | 65 |
| Product Category | Wall Washer |
| Operating temperature | -30°C +45°C |
| Tilt | 190° |
| IK grade protection | 07 |
| Optional/Accessories | |
|---|---|
| LED 6000K White | None, Yes |
| A - Flight case CCLED CASEx2 | None, Yes |
| Others | |
|---|---|
| 563-BD (art.900104) | No, Yes |
| 563-AG (art.900004) | No, Yes |
| 563LED-FROST (art.900411) | No, Yes |
| CLAMP/C (art.900516) | No, Yes |
| FFB (art.900517) | No, Yes |
| SAFETY WIRE/C (art.900523) | No, Yes |
