Product Description

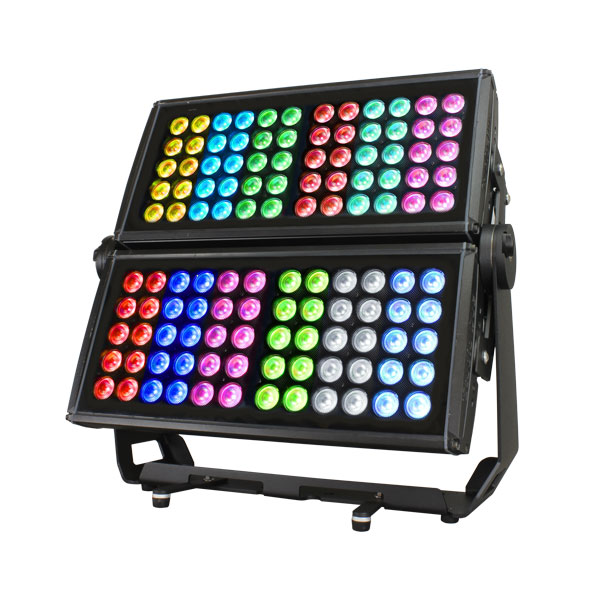

R12. RGBW (with 4000K white LED) wash/flood light twin headed fixture with 12 independent segment control 10 LEDs, which can be controlled individually to create engaging eye candy that enhances any live production. RDM/DRS. Touch control panel. CitycoloR12 RGBW has IP65 protection rating.


Downloads

UM_CitycoloR12.pdf
Technical specification
LED type
RGBW5050MULTICHIP
Number of LEDs
120
LED expected lifetime (hrs)
50000
Lumen MAX
97000
Red lumen (lm)
24000
Green lumen (lm)
33000
Blu lumen (lm)
7100
White lumen (lm)
44000
Colour temperature range (K)
2000 - 10000
Lenses (upper head)
10°x50°
15°
15°x30°
25°
40°
60°
Lenses (lower head)
10°x50°
15°
15°x30°
25°
40°
60°
Filters upper head (optional)
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 60° x 1° (1° = native lens) vertical
Filters lower head (optional)
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 60° x 1° (1° = native lens) vertical
Connectors and cables
Main Power: PowerCon IP65 connector (male-female)
DMX signal: XLR5pin IP65 connector (male-female)
Control type
DMX - RDM
DMX - RDM + Wireless (on request)
Functions
LED display with flip function
Dedicated DMX channel for white balance from 2000K to 10000K
Dedicated DMX channel for macro
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
Setup
RDM/DRS + touch control panel
DMX channels
54ch - 48ch - 9ch - 4ch
Input range
180 - 305 VAC; 47/63 Hz
Power (W)
1200
Current
5,2A@230VAC
Power Factor
PF>0,95@230VAC
Materials
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
Mounting systems
Surface
Truss (optional)
Colour finishing
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
Marine Grade treatment
None
Yes
Tilt
190°
IP protection rating
65
IK grade protection
07
Operating temperature
-30°C +45°C
Sizes l x p x h (mm)
680 x 170 x 595
Weight (Kgs)
30
A - Flight case CCLED CASEx2
None
Yes
LED 6000K White
None
Yes
