Product Description

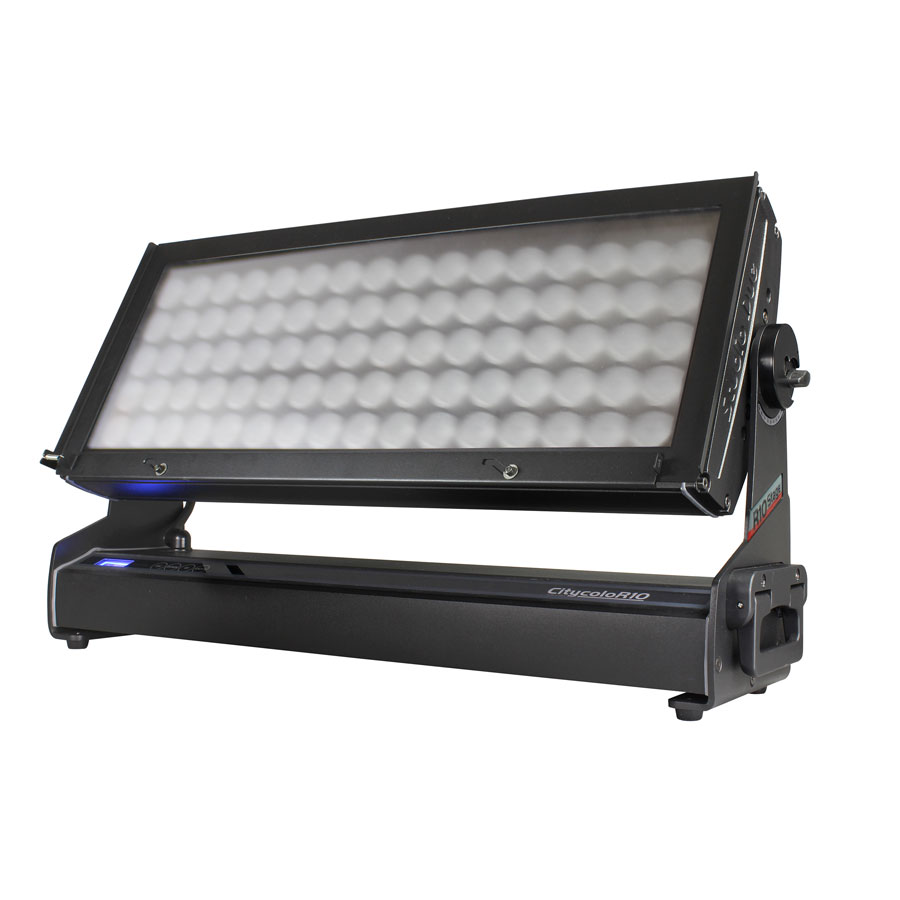

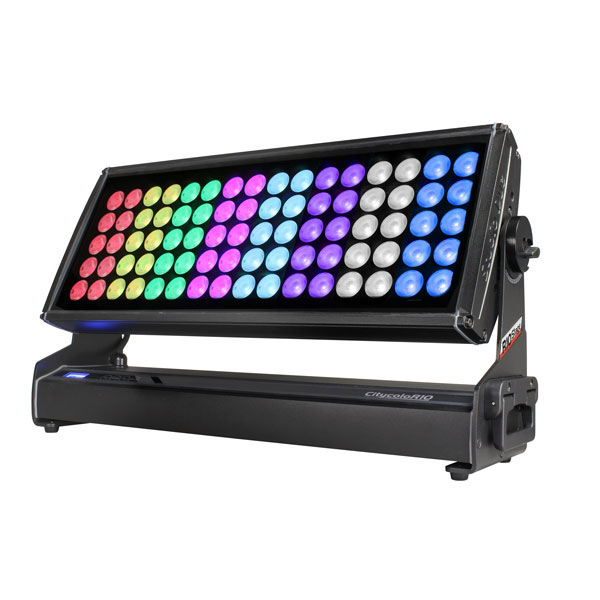

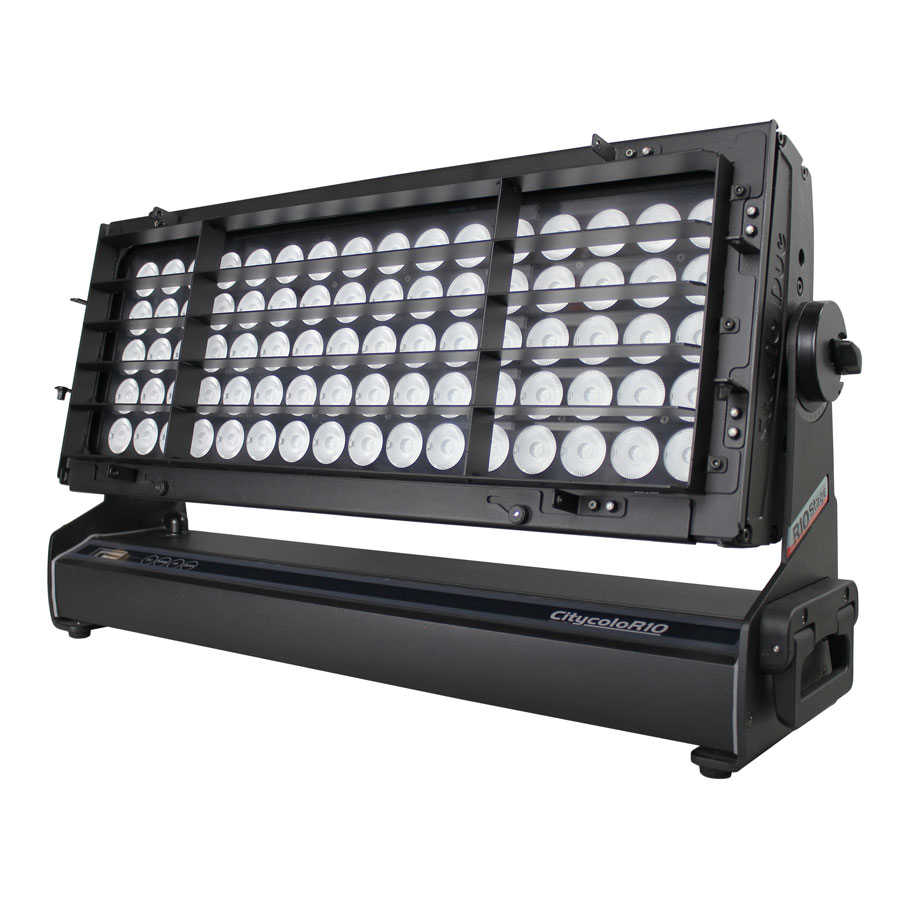

R10. Wash/flood light fixture with 8 independent segment control 10 LEDs, which can be controlled individually to create engaging eye candy that enhances any live production. RDM/DRS. Touch control panel. IP 65 protection rating.

Downloads

UM_CitycoloR10 series.pdf

datasheet CityColoR10 Stage art.220110.pdf

disegno CityColoR10 Stage art.220110.pdf

ART.220110 - CITYCOLOR10 STAGE.zip
Technical specification
Icon attribute
Icon attribute
Icon attribute
Icon attribute
LED type
RGBW5050MULTICHIP
Number of LEDs
80
LED expected lifetime (hrs)
50000
Lumen MAX
58400
Red lumen (lm)
12000
Green lumen (lm)
22000
Blu lumen (lm)
4000
White lumen (lm)
24400
Lenses
15°
15°x30°
25°
40°
60°
Filters
None
f 60°
f 100°
f 8°x 60°

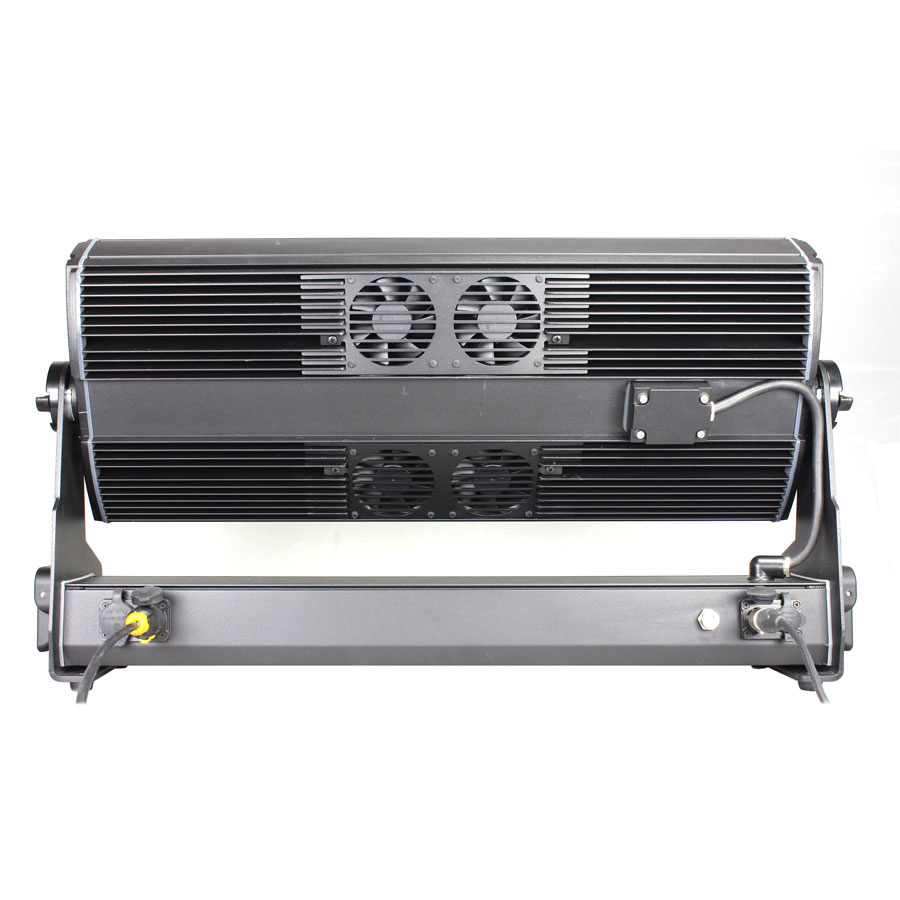

Connectors and cables
Main Power: PowerCon IP65 connector (male-female)
DMX signal: XLR5pin IP65 connector (male-female)
Control type
Protocol USITT DMX512 - RDM
Protocol USITT DMX512 - RDM + Wireless (on request)
Functions
LED display with flip function
Dedicated DMX channel for white balance from 2000K to 10000K
Dedicated DMX channel for macro
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
Setup
RDM/DRS + touch control panel
DMX channels
38ch - 32ch - 9ch - 4ch
Input range
100 - 240 VAC; 47/63 Hz
Power (W)
800
Current
3,5A@230VAC
Power Factor
PF>0,95@230VAC
Materials
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated

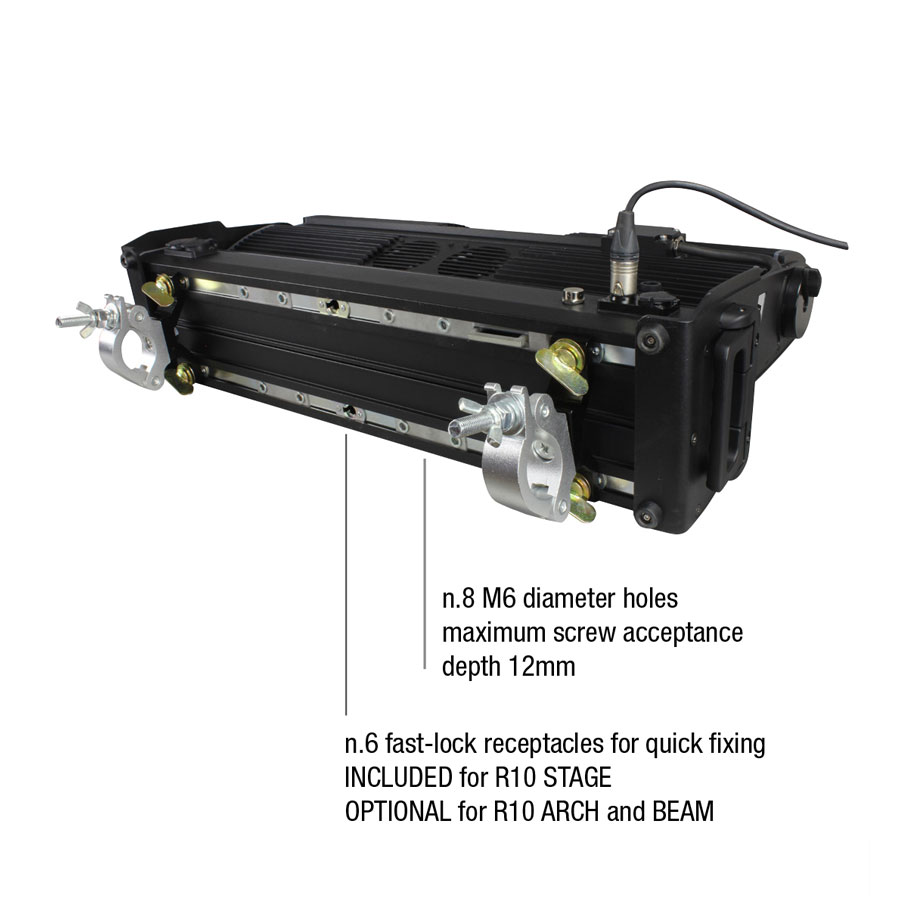

Mounting systems
Surface
Truss (optional)
Colour finishing
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
Marine Grade treatment
None
Yes

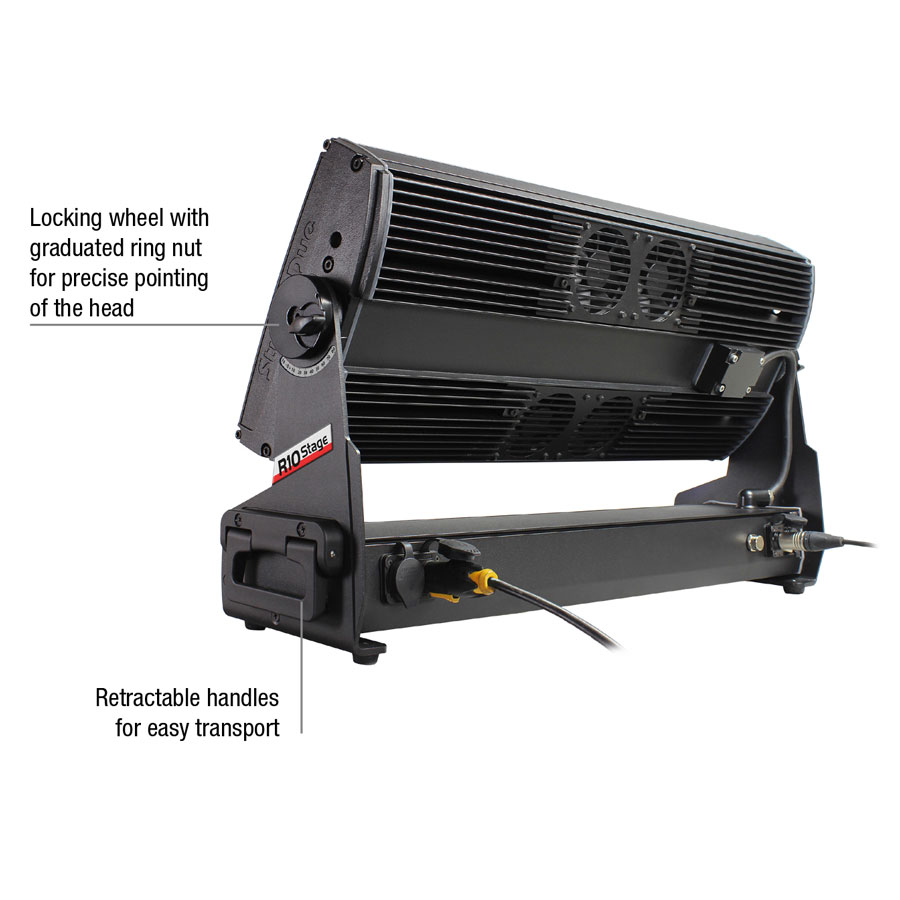

Tilt
122°
IP protection rating
65
IK grade protection
07
Operating temperature
-30°C +45°C
Sizes l x p x h (mm)
735 x 185 x 385
Weight (Kgs)
19,7
LED 6000K White
None
Yes

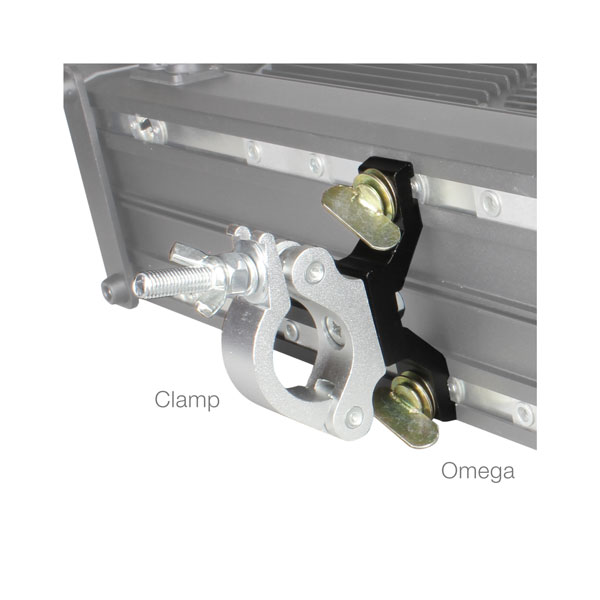

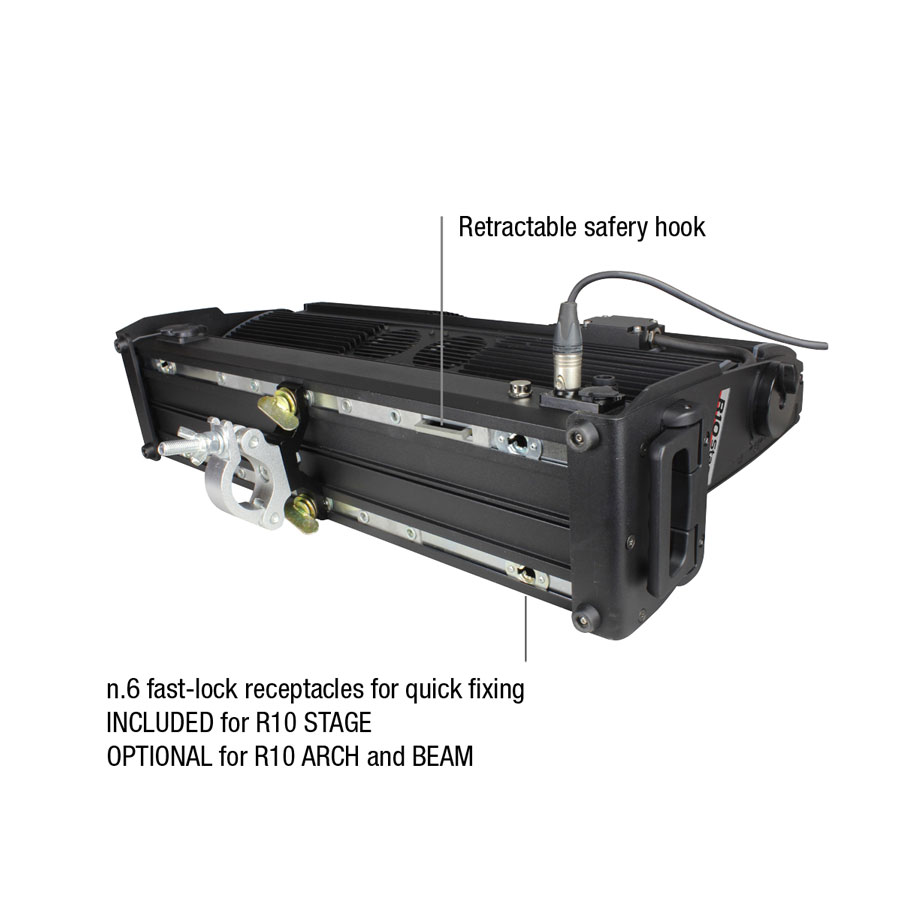

A - FFB fast fixing bracket Omega
None
Yes
A - CLAMP professional in aluminium
None
Yes
A - Flight case CCR10 CASEx2
None
Yes
A - Anti glare CCR10-AG
None
Yes

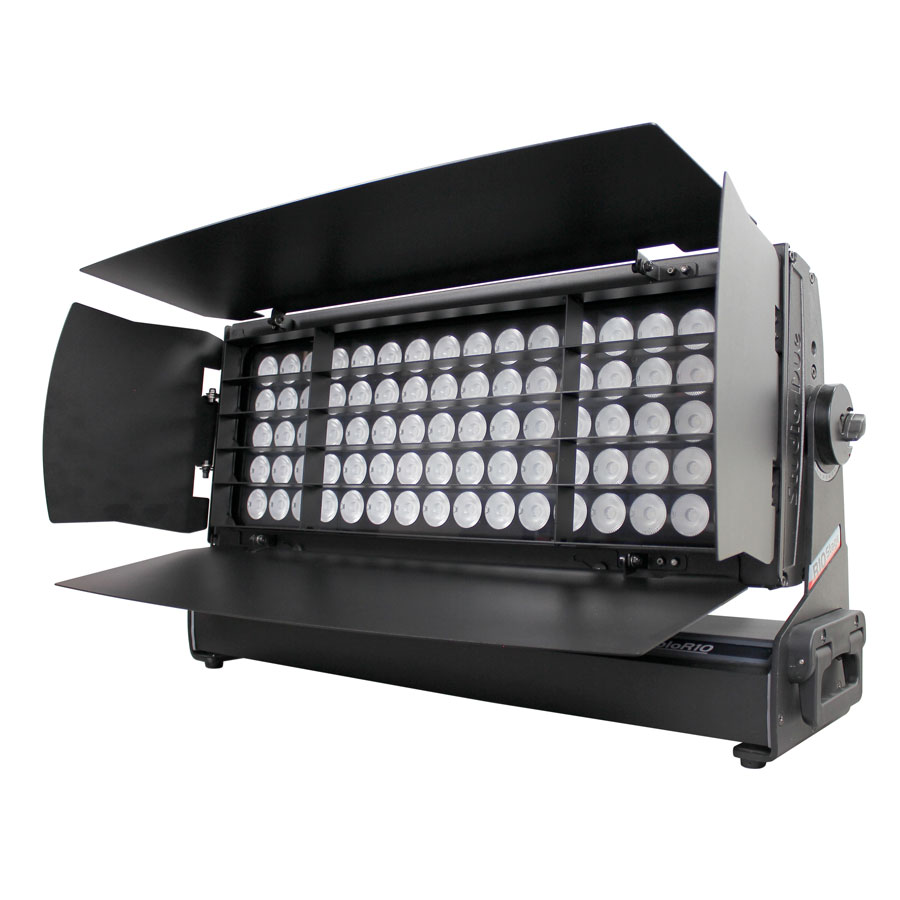

A - Barn door CCR10-BD
None
Yes
A - Frost CCR10-FROST
None
Yes
