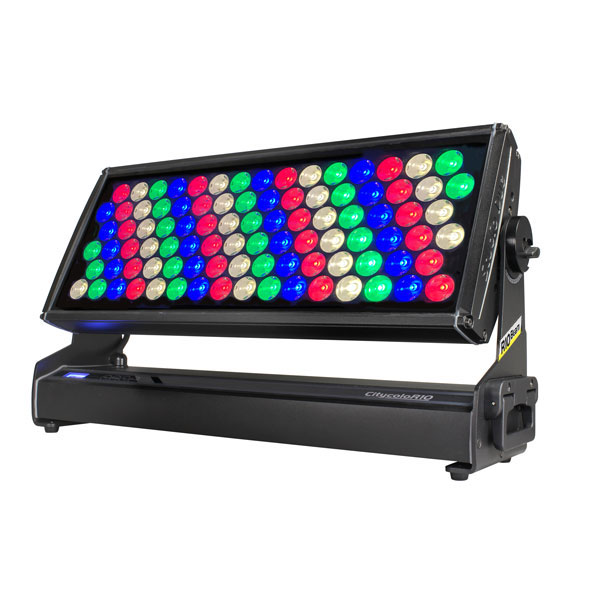

CITYCOLOR10 Beam RGBW (it.220310)
R10. Very high power long distance single LEDs color changer. IP 67 protection rating. Superb color mixing. Ultranarrow 4° projection, on request other optics. Great light output. Characterized by a modern and essential design, completely made of aluminum alloy.
Documents
R10. Very high power long distance single LEDs color changer. IP 67 protection rating. Superb color mixing. Ultranarrow 4° projection, on request other optics. Great light output. Characterized by a modern and essential design, completely made of aluminum alloy.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | Single-chip LED R+G+B+W |
| Lumen max source (lm) | 26600 |
| Red lumen (lm) | 4800 |
| LED expected lifetime (hrs) | 50000 |
| Green lumen (lm) | 6000 |
| Number of LEDs | 93 |
| Blu lumen (lm) | 2800 |
| White lumen (lm) | 13000 |
| Optics | |
|---|---|
| Lenses | 4° Ultra Narrow |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3pin IP67 connector (male-female), Main Power: connettore 4pin IP67 (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | LED display with flip function, Dedicated DMX channel for white balance from 2000K to 10000K, Dedicated DMX channel for macro, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function |
| Setup | RDM/DRS + touch control panel |
| DMX channels | 10ch - 9ch - 4ch |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 330 |
| Current | 1,5A@230VAC |
| Power Factor | Active Power factor Corrector (PFC) |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| Tilt | 122° |
| IP protection rating | 67 |
| IK grade protection | 07 |
| Operating temperature | -30°C +45°C |
| Sizes l x p x h (mm) | 735 x 185 x 385 |
| Weight (Kgs) | 19,7 |
| Product Category | Narrow Beam |
| Optional/Accessories | |
|---|---|
| LED Amber | None, Yes |
| LED 2700K White | None, Yes |
| LED 6500K White | None, Yes |
| Accessories - XLR-Powercon IP65 Connectors | None, Yes |
| Others | |
|---|---|
| CCR10-BD (art.900101) | No, Yes |
| CCR10-AG (art.900001) | No, Yes |
| CCR10-FLR kit6 (art.900544) | No, Yes |
| CLAMP/C (art.900516) | No, Yes |
| FFB (art.900517) | No, Yes |
| Marine Grade (art.900546) | No, Yes |
| SAFETY WIRE/C (art.900523) | No, Yes |
