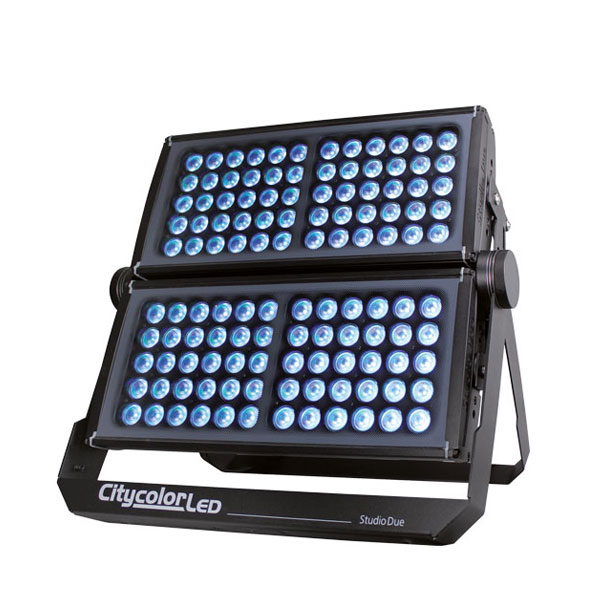

CITYCOLOR LED RGBW (it.130210)

https://www.studiodue.com/web/image/product.template/20/image_1920?unique=5a91a4b

Hi Power twin headed wash LED colorchanger. 120 RGBW LEDs. IP 67 protecting rating. Possibility to set up different lenses on each head

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses (upper head)
  • Lenses (lower head)
  • Filters upper head (optional)
  • Filters lower head (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Power Factor
  • Inrush current
  • Tilt
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • LED 6000K White
  • 563-BD (art.900104)
  • 563-AG (art.900004)
  • 563LED-FROST (art.900411)
  • CCLED-AD BOX (art.900501)
  • CLAMP/C (art.900516)
  • FFB (art.900517)
  • SAFETY WIRE/C (art.900523)
  • CCLED CASEx2 (Flight Case)

This combination does not exist.

LED type RGBW5050MULTICHIP
Number of LEDs 120
LED expected lifetime (hrs) 50000
Lumen max source (lm) 60000
Red lumen (lm) 14000
Green lumen (lm) 20000
Blu lumen (lm) 4300
White lumen (lm) 26000
Lenses (upper head) , 10°x50°, 15°, 15°x30° standard, 25°, 40°, 60°
Lenses (lower head) , 10°x50°, 15°, 15°x30° standard, 25°, 40°, 60°
Filters upper head (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter 60° x n° (n° = native lens) vertical
Filters lower head (optional) None, Elliptical projection filter 60° x 1° (1° = native lens) horizontal, Elliptical projection filter 60° x 1° (1° = native lens) vertical
Connectors and cables Main Power: 3x1,5mm cable, DMX signal: 4pin IP67 connector (male-female)
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions RDM/DRS + touch control panel, LED display with flip function, Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS + touch control panel
DMX channels 9ch - 5ch - 4ch
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 660
Current 2,9A@230VAC
Power Factor PF>0,95@230VAC
Inrush current 40A@230V
Materials Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
Tilt 240° - 2 adjustable heads +9° each
IP protection rating 65
IK grade protection 07
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 680 x 145 x 640
Weight (Kgs) 32 kg
Product Category Wall Washer
LED 6000K White None, Yes
563-BD (art.900104) No, Yes
563-AG (art.900004) No, Yes
563LED-FROST (art.900411) No, Yes
CCLED-AD BOX (art.900501) No, Yes
CLAMP/C (art.900516) No, Yes
FFB (art.900517) No, Yes
SAFETY WIRE/C (art.900523) No, Yes
CCLED CASEx2 (Flight Case) No, Yes


Hi Power twin headed wash LED colorchanger. 120 RGBW LEDs. IP 67 protecting rating. Possibility to set up different lenses on each head
