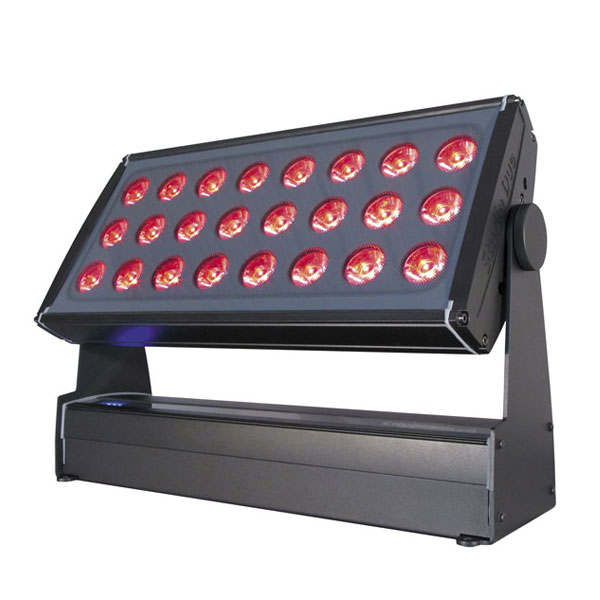

CITYBEAM LED24 RGBW (it.130410)

CITYBEAM LED24 RGBW (it.130410)

https://www.studiodue.com/web/image/product.template/241/image_1920?unique=5a91a4b


Not Available For Sale

  • LED type
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Number of LEDs
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Connectors and cables
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • IP protection rating
  • Sizes l x p x h (mm)
  • Mounting systems
  • Marine Grade treatment
  • Weight (Kgs)
  • Product Category
  • Colour finishing

This combination does not exist.

Contact Us



Specifications

Lighting source
LED type RGBW (20W)
Lumen max source (lm) 14000
Red lumen (lm) 3000
Green lumen (lm) 5000
Number of LEDs 24
Blu lumen (lm) 900
White lumen (lm) 6000
Optics
Lenses 6° Ultra Narrow
Connections
Connectors and cables Main Power: connettore 4pin IP67 (male-female), Main Power: 3x1mm cable H05 1,5mt
Control
Control type DMX - RDM + Wireless (on request)
Functions and Setup
Functions RDM/DRS + touch control panel
Power supply
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 210
Physical
Mounting systems Surface, Truss (optional)
Marine Grade treatment None, Yes
Colour finishing Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional)
IP protection rating 67
Sizes l x p x h (mm) 613 x 185 x 415
Weight (Kgs) 19
Product Category Narrow Beam
