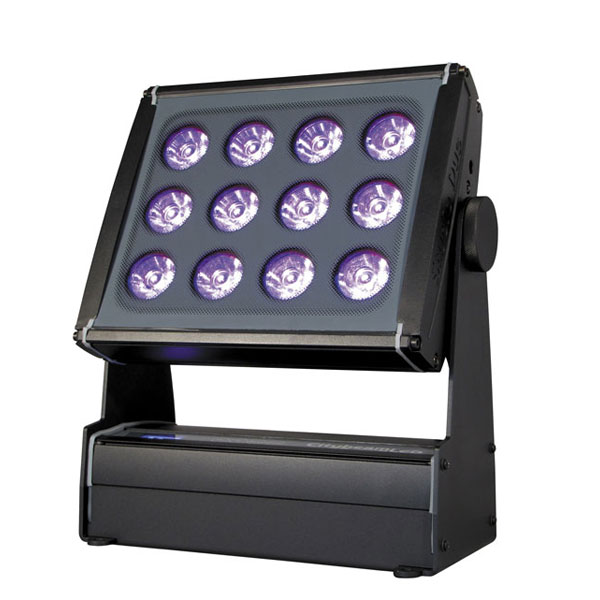

CITYBEAM LED12 RGBW (it.130310)

CITYBEAM LED12 RGBW (it.130310)

https://www.studiodue.com/web/image/product.template/240/image_1920?unique=5a91a4b


Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Connectors and cables
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type RGBW (20W)
Number of LEDs 12
Lumen max source (lm) 7000
Red lumen (lm) 1500
Green lumen (lm) 2500
Blu lumen (lm) 450
White lumen (lm) 3000
Lenses 6° Ultra Narrow
Connectors and cables Main Power: connettore 4pin IP67 (male-female), Main Power: 3x1mm cable H05 1,5mt
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions RDM/DRS + touch control panel, Wireless DMX receiver
Input range Universal 100 - 240 VAC; 50/60 Hz
Power max (W) 105
Mounting systems Surface, Truss (optional)
Colour finishing Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
IP protection rating 67
Sizes l x p x h (mm) 355 x 185 x 415
Weight (Kgs) 12
Product Category Narrow Beam
