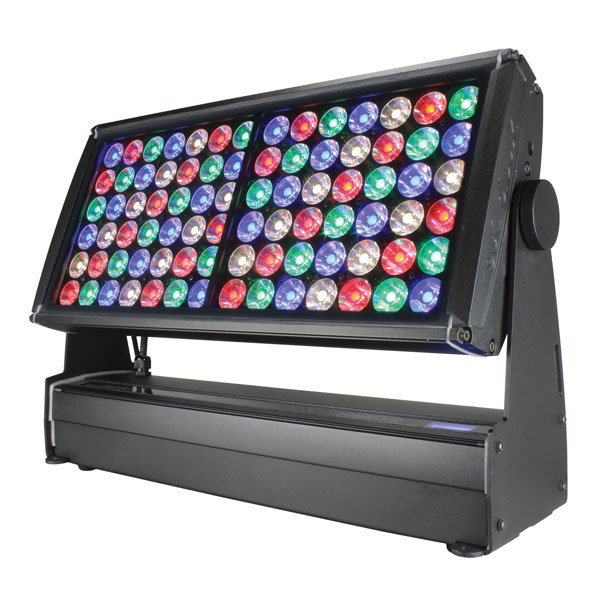

CITYBEAM LED SL84 RGBW (it.177510)

• LED type
  • Single-chip LED R+G+B+W
• Number of LEDs
  • 84
• Lumen max source (lm)
  • 22000
• Red lumen (lm)
  • 3300
• Green lumen (lm)
  • 6200
• Blu lumen (lm)
  • 2600
• White lumen (lm)
  • 10000
• Lenses
  • 4° Ultra Narrow
• Connectors and cables
  • Main Power: 3x1mm cable H05 1,5mt
  • DMX signal: 4pin IP67 connector (male-female)
• Control type
  • DMX - RDM
  • DMX - RDM + Wireless (on request)
• Functions
  • LED display with flip function
  • Dedicated DMX channel for white balance from 2000K to 10000K
  • DMX or Auto Mode with Master-Slave function
  • Intelligent temperature control
  • Smooth dimming function
  • Halogen simulation
  • CYM simulation
  • Flicker-free function
• Setup
  • RDM/DRS + touch control panel
• DMX channels
  • 9ch - 5ch - 4ch
• Input range
  • 100 - 240 VAC; 47/63 Hz
• Power max (W)
  • 230
• Current
  • 1A@230VAC
• Power Factor
  • PF>0,95@230VAC
• IP protection rating
  • 67
• Operating temperature
  • -30°C +45°C
• Sizes l x p x h (mm)
  • 613 x 184 x 415 mm
• Weight (Kgs)
  • 18,5
• Mounting systems
  • Surface
  • Truss (optional)
• Colour finishing
• Marine Grade treatment
  • None
  • Yes
• Product Category
  • Narrow Beam
• 540-BD (art.900107)
  • No
  • Yes
• 540-AG (art.900007)
  • No
  • Yes
• CLAMP/C (art.900516)
  • No
  • Yes
• FFB (art.900517)
  • No
  • Yes
• SAFETY WIRE/C (art.900523)
  • No
  • Yes
